T&S Brass 002712-40
Send Print
  1. pin-int

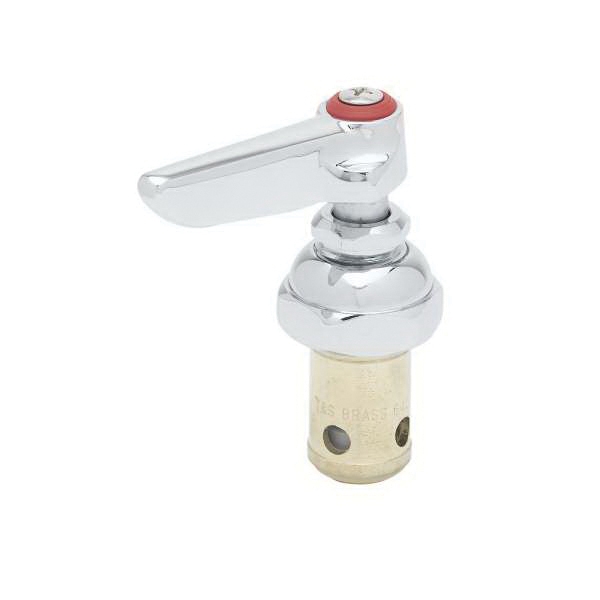

T&S Brass 002712-40

1/4-Turn Compression Right Hand Hot Eterna Cartridge for T&S Faucets

  • Manufacturers: T&S Brass
  • Brand Name: T&S Brass
  • PN: TS002712-40M50
  • MPN: 002712-40
  • UPC: 671262040457
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Flow Rate      :      11.25 gpm at 60 psi
Height      :      3-1/4 in
Item Name      :      Eterna Cartridge
Pressure Rating      :      20 - 125 psi
Temperature Rating      :      40 - 140 deg F
Type      :      1/4-Turn Compression, Right Hand Hot
  • Eterna cartridge, RTC with spring check
  • Lever handle, red index and screw

Standards/Certifications: ADA compliant, ANSI/ICC A117.1, ASME A112.18.1, CSA B125.1, NSF 61-9 and 372 certified

Applications: For T&S faucets

  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28284_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28284_Tech.pdf
