Bradley S19-320

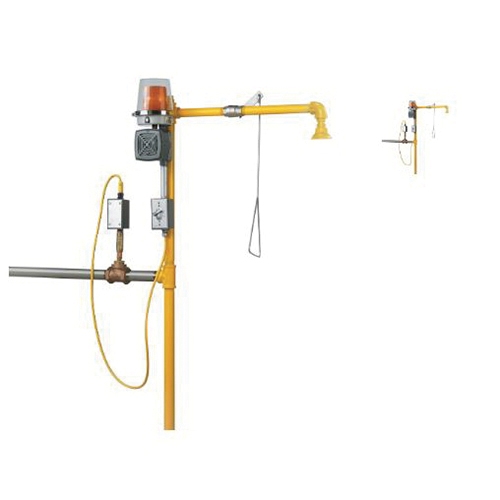

Flow Switch Alarm System with 6 ft Cable, 120 V

  • Manufacturers: Bradley Corporation
  • Brand Name: Bradley
  • PN: BRS19320
  • MPN: S19-320
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Frequency Rating      :      50/60 Hz
Item Name      :      Flow Switch Alarm System with 6 ft Cable
Type      :      2-Pole
Voltage Rating      :      120 V
  • Automatic, audible and visual system
  • Designed to meet NEMA 3R code (Water-proof)
  • Easily connected to emergency fixtures with 1-1/4 in inlet piping
  • Strobe light is UL listed
  • Alarm horn in adjustable from 78 - 103 dB and is UL listed
  • Includes remote wiring contacts
  • On/off switch the horn can be turned-off while the strobe light continues to flash and the water flows
  • Strobe light intensity is 258000 maximum, effective candela on horizontal axis, safety amber-colored glass, dust cover, all solid state components with no moving parts for maintenance-free operation
  • Water-tight and completely assembled for easy hookup to alarm assembly
  • Prewired, 6-ft, multiple conductor, quick-connect, water-proof cable for easy connection to the alarm assembly
  • Remote location hook-up possible by using contacts in the flow switch junction box
