F&W CPJ07SB

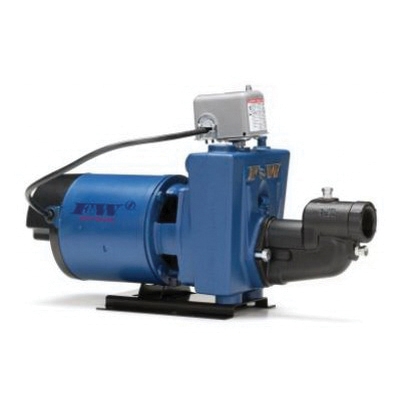

CPJ Gray Iron Shallow Well Jet Pump with Bolt-on Ejector, 230 VAC, 3/4 hp, 3450 rpm, 1800 gph, 25 ft

  • Manufacturers: Flint & Walling
  • Brand Name: F&W
  • PN: FWCPJ07SB
  • MPN: CPJ07SB
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      14 A
Bearing Type      :      Ball
Connection Size      :      1-1/4 in Suction x 1 in Discharge
Flow Rate      :      1800 gph
Frequency Rating      :      60 Hz
HP Rating      :      3/4 hp
Item Name      :      Jet Pump with Bolt-on Ejector
Material      :      Gray Iron
Maximum Feet of Head      :      25 ft
Phase      :      1 ph
Pressure Rating      :      30 - 50 psi Discharge, 55 psi Maximum
RPM      :      3450 rpm
Series      :      CPJ
Type      :      Shallow Well
Voltage Rating      :      230 VAC
  • The CPJ models feature the famous F&W "Service Plus" motor, available in NEMA J construction
  • The F & W 56 frame, double ball bearing motor offers the ultimate in performance and dependability
  • Designed for years of trouble-free operation and simple, swift, on-site servicing, the CPJ features unique interchangeability of replacement parts to keep inventories at a minimum
  • Includes pump, motor, pressure switch and bolt-on shallow well ejector

Standards/Certifications: UL 778 listed, CSA certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16096_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16096_Install.pdf
