Domestic Manufacturer 0309002806

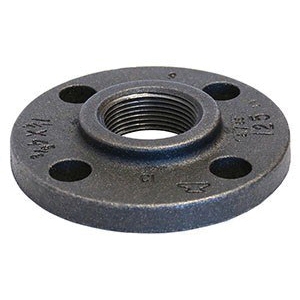

1011 SCH STD Class 125 Galvanized Cast Iron Faced and Drilled Companion Flange, 2 in, FNPT, Domestic

  • Manufacturers: Domestic Manufacturer
  • Brand Name: Domestic Manufacturer
  • PN: GCF2
  • MPN: 0309002806
  • UPC: 690291022555
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      2 in
Connection Type      :      FNPT
Finish      :      Galvanized
Hub Diameter      :      3-1/16 in
Item Name      :      Faced and Drilled Companion Flange
Length Through Hub      :      1 in
Material Specifications      :      ASTM A126 (A) or (B), ASTM A153
Material      :      Cast Iron
Model      :      1011
Outside Diameter      :      6 in
Pressure Class      :      Class 125
Pressure Rating      :      200 psi
Schedule      :      STD
Temperature Rating      :      -20 to 150 deg F
Thickness      :      5/8 in

Class 125 (standard) iron flanges are manufactured to American national standard ASME B16.1 except as noted. Class 125 iron flanges are available in both black-painted and galvanized.

Standards/Certifications: ASME B16.1, ASME B1.20.1, cULus listed, FM approved
