nVent H908

WinterGard Plug-In Power Connection Kit for H311, H611 and H612 Heating Cables

  • Manufacturers: nVent Thermal Management
  • Brand Name: nVent
  • PN: H908
  • MPN: H908
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability

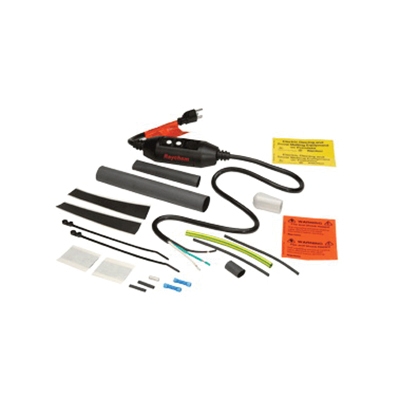

Includes      :      (1) Plug-In Ground-Fault Equipment Protection Device, (2) Black Cloth Tapes (6 in L x 1 in W), (1) Uninsulated Braid Crimp, (2) Insulated Bus Wire Crimps, (2) Heat-Shrinkable Tubes (1 in L x 1/8 in Dia), (2) Clamp Ties, (1) Heat-Shrinkable Tube (8 in L x 1 in Dia), (2) Warning Labels, (2) De-Icing and Snow Melting Equipment Labels, (2) Mastic Strips and (1) Gel-Filled End Seal, (1) Heat-Shrinkable Tube (5 in L x 3/4 in Dia)
Item Name      :      Power Connection Kit
Sub Brand      :      WinterGard
Type      :      Plug-In
Voltage Rating      :      120 V

This nVent Raychem WinterGard H908 plug-in power connection kit is for use in pipe-heating and roof and gutter de-icing applications. The H908 is a plug-in, ground-fault-protected power connection kit. This kit is for use with any of the following WinterGard heating cables: H311, H611 and H612 120 V heating cables. The kit includes materials for one power connection and end seal.

  • Enables contractors to simply cut the heating cable to length in the field, install the connection kit and insert the plug into a standard grounded outlet
  • Powers up to 250 ft of heating cable-up to twice the length that previous field-assembled plug-in systems could power
  • Provides built-in 27 mA ground-fault protection of equipment as required by national electrical codes

Standards/Certifications: UL listed, CSA certified

Applications: For H311, H611 and H612 heating cables
