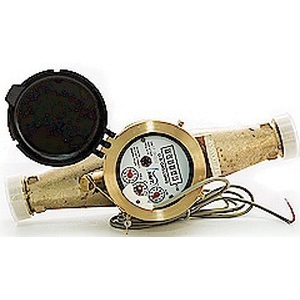

Norgas ECO-BW480.2

MultiMag Brass Water Meter, 2 in, 8 - 160 gpm

  • Manufacturers: Norgas Controls
  • Brand Name: Norgas
  • PN: ECO-BW480.2
  • MPN: ECO-BW480.2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Dimension      :      21 in L x 6.8 in H
Flow Rate      :      8 - 160 gpm
Item Name      :      Water Meter
Material      :      Brass
Pressure Rating      :      150 psi
Size      :      2 in
Sub Brand      :      MultiMag
Temperature Rating      :      105 deg F Cold, 194 deg F Hot

The MultiMag series water meters utilize multijet principles for accurate water measurement and are known for their simplicity, longevity and accuracy. The MultiMag is tested to the most recent AWWA C708 accuracy standards. The pulse output capability allows for the MultiMag to be used for remote reading. The MultiMag is intended for horizontal applications. In addition to the various sizes, the MultiMag is also available in hot and cold versions.

  • Hot or cold meter model
  • Multi-jet design
  • Pulse output
  • Horizontal install only
  • Thermoplastic internal material
  • 6 mA at 12 VDC pulse output
  • 1/1 or 1/10 gal pulse value

Standards/Certifications: AWWA C708, NSF 61 and 372 certified

Applications: For horizontal applications
