Eemax

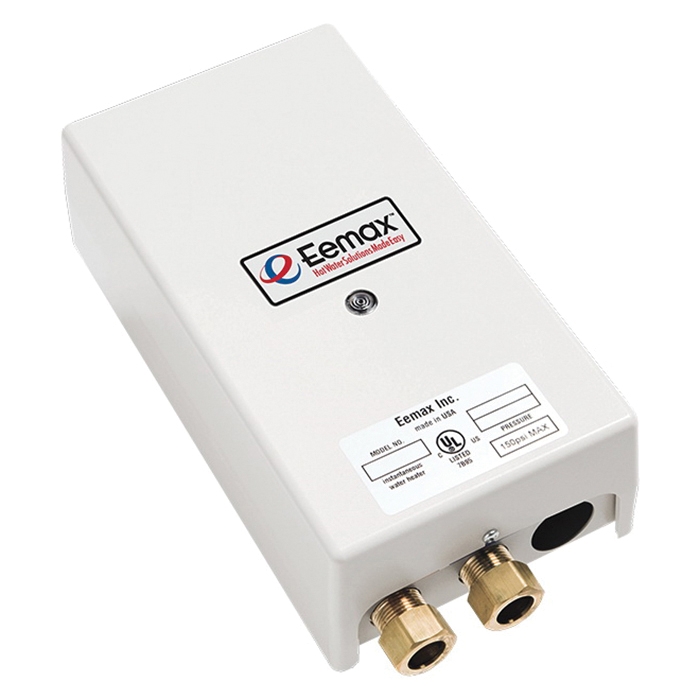

Series One Single-Point and Flow Controlled Electric Tankless Water Heater, 277 V, 06 kW, 7 gpm Turn On

  • Manufacturers: Eemax
  • Brand Name: Eemax
  • PN: SPEX60
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      22 A
Color      :      White
Connection Size      :      1/2 in Compression
Dimension      :      5.22 in W x 9.67 in H x 3 in D
Efficiency      :      99%
Flow Rate      :      0.7 gpm Turn On
Item Name      :      Electric Tankless Water Heater
Phase      :      1 ph
Pressure Rating      :      25 - 150 psi
Sub Brand      :      Series One
Temperature Rating      :      140 deg F
Type      :      Single-Point and Flow Controlled
Voltage Rating      :      277 V
Wattage      :      6 kW
  • On demand hot water - no delay
  • Cut energy waste - flow switch activates heater only when water is running, no standby heat loss
  • 99% efficient, 0.99 energy factor
  • Endless hot water - no storage capacity to deplete
  • Reduces installation cost and material - no temperature and pressure valve required (check local codes)
  • Easy installation - simple compression fittings that require no soldering, unit mounts directly to the wall with common hardware
  • Prevents legionella bacteria growth
  • Reduces calcification and sedimentation
  • Field serviceable - all major component are field replaceable and readily available
  • Proudly made in USA

Standards/Certifications: UL E86887, ANSI/NSF 372 certified

Applications: For light commercial, shopping mall and retail outlets, schools and all other public buildings, office and tenant spaces, commercial builds such as restaurants and service stations, modular buildings, office and trailers, concession stands and food service locations, any remote sink that does not have hot water

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14956_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14956_Spec.pdf
