Omegaflex

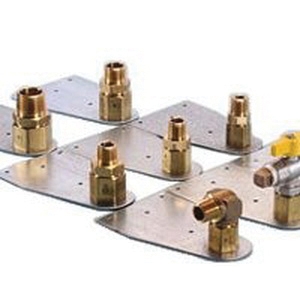

TracPipe Brass Termination Mount, 1/2 in

  • Manufacturers: Omegaflex
  • Brand Name: Omegaflex
  • PN: FGP-RFG-500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Height      :      2-7/16 in
Item Name      :      Termination Mount
Length      :      6-3/8 in
Material      :      Brass
Pressure Rating      :      25 psi
Sub Brand      :      TracPipe
Temperature Rating      :      -20 to 200 deg F
Width      :      4 in
  • Yellow brass nut, adapter and split rings
  • Stainless steel insert
  • Galvanized steel mounting bracket
  • Termination fitting between TracPipe or CounterStrike tubing and NPT thread for indoor, outdoor and concealed location
  • Must be installed in accordance with the TracPipe design guide and installation instructions and all applicable codes
  • 1-1/8 in Dia across flat

Standards/Certifications: ANSI LC1/CSA 6.26, ANSI Z21.15, ANSI Z223.1, ICC codes (IFGC, IRC, IMC, IPC), NFPA 54, CAN/CSA B149.1, NFPA 58, CSA, ICC PMG 1046/1058, IAPMO (UPC) file 3682/ES ER-0227

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS15715_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS15715_Spec.pdf
