Omegaflex FGP-WBTM-500

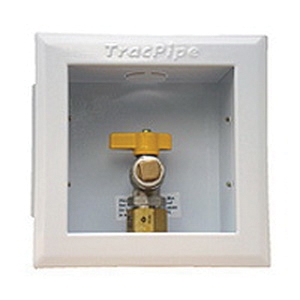

TracPipe Powder Coated Steel Metal Wallbox with Valve, 1/2 in, NPT

  • Manufacturers: Omegaflex
  • Brand Name: Omegaflex
  • PN: FGP-WBTM-500
  • MPN: FGP-WBTM-500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      NPT
Finish      :      Powder Coated
Height      :      3-1/8 in
Item Name      :      Metal Wallbox with Valve
Length      :      5 in
Material      :      Steel
Pressure Rating      :      1/2 psi
Sub Brand      :      TracPipe
Temperature Rating      :      -20 to 200 deg F
Width      :      5 in
  • Yellow brass nut, adapter and split rings
  • Stainless steel insert
  • Powder coated steel wall box
  • Metal wall box with valve for use with zero clearance appliance installations, reverse mounting tabs to accommodate double sheetrock walls
  • Must be installed in accordance with the TracPipe design guide and installation instructions and all applicable codes
  • 1-1/8 in nut
  • 1-1/8 in valve body
  • 6-3/4 in trim ring

Standards/Certifications: ANSI LC1/CSA 6.26, ANSI Z21.15, ANSI Z223.1, UL 1479, ICC codes (IFGC, IRC, IMC, IPC), NFPA 54, CAN/CSA B149.1, NFPA 58, CSA, ICC PMG 1046/1058, IAPMO (UPC) file 3682/ES ER-0227
