Testo 0560 5522 01

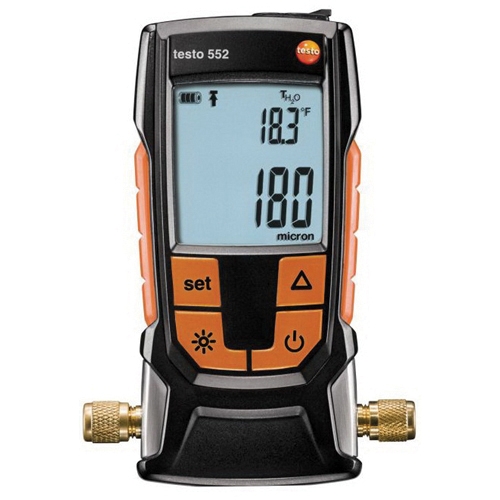

Black/Orange Digital Vacuum/Micron Gauge with Bluetooth, 0 - 0.39 psi/0 - 26.66 mbar/0 - 20000 micron

  • Manufacturers: Testo International
  • Brand Name: Testo
  • PN: TE0560552201
  • MPN: 0560 5522 01
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Accuracy      :      Plus/Minus (10 micron Plus 10% of mV) (100 - 1000 micron)
Color      :      Black/Orange
Depth      :      2 in
Item Name      :      Digital Vacuum/Micron Gauge with Bluetooth
Length      :      6 in
Measuring Range      :      0 - 0.39 psi/0 - 26.66 mbar/0 - 20000 micron
Resolution      :      1 micron (0 - 1000 micron)/10 micron (1000 - 2000 micron)/100 micron (2000 - 5000 micron)
Temperature Rating      :      14 - 122 deg F
Width      :      4 in

Precise deep vacuum measurements measured at single digit resolutions are carried out with Pirani sensors. The testo 552 provides real time calculations for the saturation temperature of water, which determines the proper micron/temperature levels at which moisture is removed from the system. These internal calculations inform you when the pressure is low enough to meet your evacuation target. This saves you time and assures that the system is now free from moisture and contaminants. User defined alarm points alert you when target values are reached.

  • Precise and reliable vacuum measurements, 1 micron resolution
  • Displays the saturation temperature of H2O to ensure full and proper evacuation
  • Illuminated, backlit display with visual alarm for evacuation pressure
  • Wireless Bluetooth communication to smartphone or tablet provides powerful analysis and reporting to display data, create reports and send via email or SMS

Applications: For used in air conditioning systems and how long this pressure must be maintained

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1117_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1117_Spec.pdf
