FPPI 06-025-00

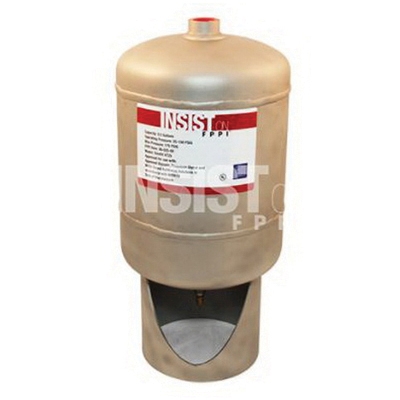

Insist On Stainless Steel Expansion Tank, 2.5 gal, 175 psi, 1 in NPT, 18-1/2 in H x 8.63 in Dia

  • Manufacturers: Fire Protection Products
  • Brand Name: FPPI
  • PN: 06-025-00
  • MPN: 06-025-00
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Capacity      :      2.5 gal
Connection Size      :      1 in NPT
Diameter      :      8.63 in
Height      :      18-1/2 in
Item Name      :      Expansion Tank
Material      :      Stainless Steel
Pressure Rating      :      175 psi
Sub Brand      :      Insist On
Temperature Rating      :      35 - 200 deg F

NFPA 13, 13D and 13R requires the use of an expansion chamber on antifreeze systems with backflow preventers. The TrimFit ET25 is a rubber bladder filled expansion chamber designed for use on antifreeze based fire sprinkler systems. It has been tested and UL listed to be compatible with both propylene glycol and glycerin based antifreeze. The expansion chamber regulates pressure caused by thermal expansion and contraction within the closed system.

  • Compatible with both glycol and glycerin systems
  • Industry leading strength/weight ratio
  • Stainless steel construction for long service life
  • Pre-charged to 25 psi with nitrogen

Standards/Certifications: UL listed

Applications: For use on antifreeze based fire sprinkler systems, NFPA 13, 13D and 13R systems
