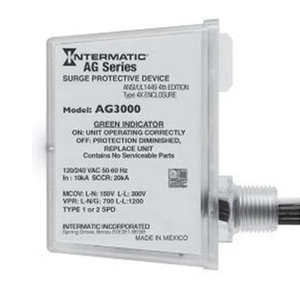

Intermatic AG3000

Surge Protective Device for Central Air Conditioning Units, Heat Pumps, Mini-Splits, Air Handlers and Wall Hung Boilers

  • Manufacturers: Intermatic Incorporated
  • Brand Name: Intermatic
  • PN: AG3000
  • MPN: AG3000
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Item Name      :      Surge Protective Device
Phase      :      1 ph
Temperature Rating      :      -40 to 158 deg F
Voltage Rating      :      120/240 VAC

The AG3000 surge protective device is designed for a variety of type 1 and type 2 applications such as central air conditioning units, heat pumps, mini-splits, air handlers and wall hung boilers. AG3000 is approved for residential/light commercial applications.

  • Green LED protection indicator
  • Unmatched surge protection ratings
  • HVAC surge protector that is both type 1 and type 2 compatible
  • Type 4X enclosure
  • 18 in 10 ga leads
  • 1/2-20 threaded nipple (weather-proof and UV-resistant)
  • Utilize state of the art TPMOV surge technology
  • 3-years product warranty

Standards/Certifications: cULus listed to ANSI UL1449

Applications: For central air conditioning units, heat pumps, mini-splits, air handlers and wall hung boilers
