AGF AGF1011A.114

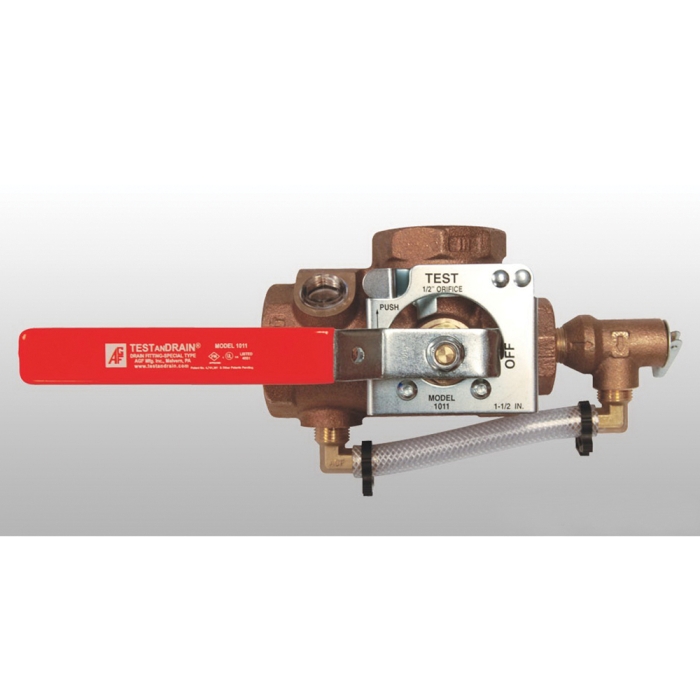

TESTanDRAIN 1011 Bronze Sectional Floor Control Test and Drain Valve, 1-1/4 in, NPT
- Manufacturers: AGF Manufacturing
- Brand Name: AGF
- PN: AGF1011A.114
- MPN: AGF1011A.114
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Ball Material | : | Chrome-Plated Brass |
| Connection Size | : | 1-1/4 in |
| Connection Type | : | NPT |
| Dimension | : | 7-15/16 in L x 7-1/2 in H |
| Item Name | : | Sectional Floor Control Test and Drain Valve |
| Material | : | Bronze |
| Model | : | 1011 |
| Operator Type | : | Steel Handle |
| Pressure Rating | : | 300 psi |
| Seat Material | : | Impregnated Teflon |
| Stem Material | : | Rod Brass |
| Sub Brand | : | TESTanDRAIN |
The lightweight and compact model 1000 is a 300 psi rated 1-handle ball valve designed to provide both the test and express drain functions required for a wet fire sprinkler system. The model 1000 inspector test and drain valve eliminates the multiple connections required by the traditional assembly loop saving time, space and money.
- Compact, 1-handle ball valve
- Tamper-resistant test orifice and sight glasses
- Relieves excess system pressure caused by surges or temperature changes
- Shipped with relief valve and bypass drain ports plugged to expedite pressure testing
- Reliability, versatility, code compatibility
- Repair kits including (1) adapter gasket, (1) ball, (2) valve seats, (1) stem packing and (1) stem washer
- Steel handle, indicator plate, bronze relief valve, brass bypass fittings, nylobraid bypass tubing
- Made in USA
Standards/Certifications: cULus, UL and ULC listed, FM approved, NYC-BSA No. 720-87-SM, NFPA-13, NFPA-13R and NFPA-13D compliant
Applications: For systems requiring pressure relief valve
