Dixon AM12

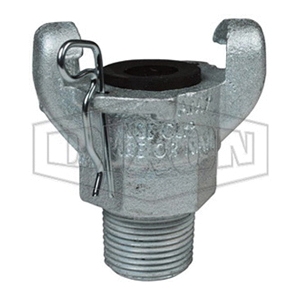

Air King Zinc-Plated Malleable Iron 2-Lug Universal Coupling, 1 in, MNPT

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon
  • PN: DIAM12
  • MPN: AM12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in
Connection Type      :      MNPT
Finish      :      Zinc-Plated
Includes      :      Safety Clip , AWR4 Rubber Washer
Inside Diameter      :      1-1/2 in
Item Name      :      Universal Coupling
Length      :      2-7/8 in
Material      :      Malleable Iron
Outside Diameter      :      2-1/2 in
Pressure Rating      :      150 psi
Sub Brand      :      Air King
Temperature Rating      :      70 deg F Ambient
Type      :      2-Lug

The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected. This guarantees the fittings are properly connected because the safety pin will not go through the holes in mating flanges until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.

  • Pressure rating of 150 psi at ambient temperature 70 deg F
  • Meets pressure requirements as specified in A-A-59553 commercial item description superseding military specification WWC-633D

Applications: For used with Air King ferrules

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12000_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12000_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12001_Tech.pdf
