Watson McDaniel AV813-13-N

AV813 Air Eliminator, 3/4 in NPT, 150 psi

  • Manufacturers: Watson McDaniel
  • Brand Name: Watson McDaniel
  • PN: AV813W
  • MPN: AV813-13-N
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      FNPT
Dimension      :      5-1/4 in L x 4-1/2 in W
Item Name      :      Air Eliminator
Material      :      Cast Iron
Model      :      AV813
Nominal Size      :      3/4 in
Pressure Rating      :      150 psi
Temperature Rating      :      300 deg F

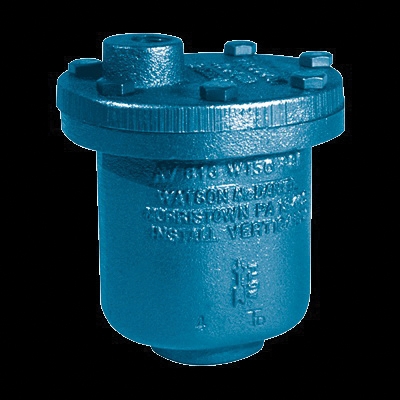

The AV813 air eliminator is used for the removal of air and other gases from vessels or piping systems without allowing the contained liquid to escape.

  • Simple design for easy maintenance
  • Stainless steel internals
  • Rugged cast iron housing

Applications: For used to removing air from liquid systems

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12233_Install.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12233_Spec.pdf
