MAS B-3-LL.12

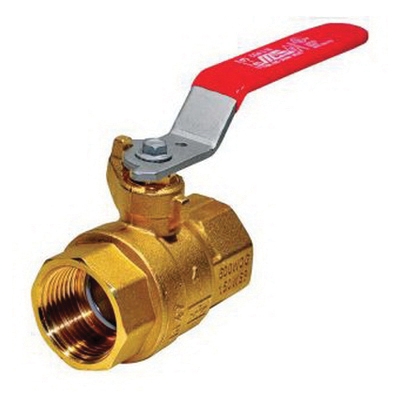

B-3-LL Class 150 Brass 2-Piece Full Port Ball Valve with Locking Lever Handle, 1/2 in, FNPT

  • Manufacturers: M.A. Stewart & Sons Ltd
  • Brand Name: MAS
  • PN: B3LL.12
  • MPN: B-3-LL.12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated Brass
Connection Size      :      1/2 in
Connection Type      :      FNPT
Dimension      :      2.12 in L
Flow Co-Efficient      :      15 Cv
Item Name      :      Ball Valve with Locking Lever Handle
Material Specifications      :      ASTM A36, ASTM B124, C37700, ASTM B283, C37700
Material      :      Brass
Model      :      B-3-LL
Operator Type      :      Steel Lever Handle
Packaging Material      :      PTFE
Pressure Class      :      Class 150
Pressure Rating      :      600 psi WOG
Seat Material      :      PTFE
Series      :      B
Stem Material      :      Brass
Temperature Rating      :      -40 to 120 deg F
Type      :      2-Piece, Full Port
  • Blowout-proof stem
  • Adjustable packing gland
  • Steel lever screw, brass packing nut, cap, zinc-plated steel wing and lath lock handles

Standards/Certifications: ANSI Z21.15/CSA 9.1, ASME B16.44/CGA-CR91-002, B16.33/CGA-3.16, ANSI B1.20.1, cULus listed, FM approved
