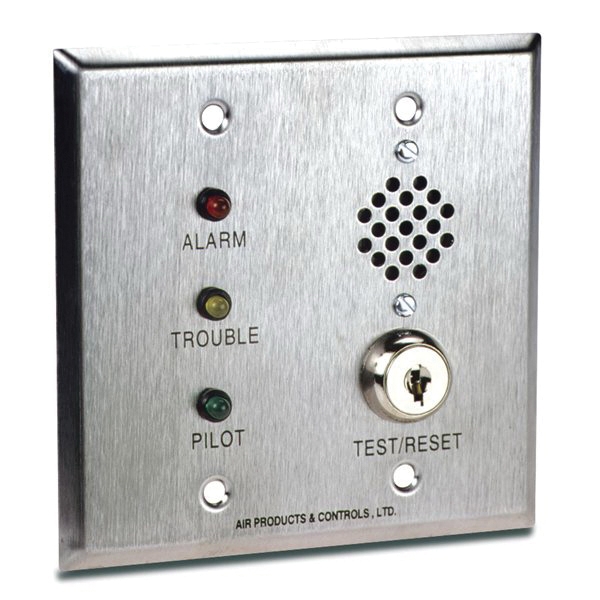

Apollo American MS-RH/KA/P/A/T

Key-Operated Remote Alarm Horn for Air Products and Controls Conventional Duct Smoke Detectors

  • Manufacturers: Apollo American
  • Brand Name: Apollo American
  • PN: MS-RH/KA/P/A/T
  • MPN: MS-RH/KA/P/A/T
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Silver
Dimension      :      114.3 mm W x 114.3 mm H
Item Name      :      Remote Alarm Horn
Power Supply      :      15 mA at 24 VDC Alarm LED/Trouble LED/Pilot LED, 20 mA at 24 VDC Alarm Horn
Sound      :      78 dB at 10 ft
Temperature Rating      :      0 - 49 deg C
Type      :      Key-Operated
Wire Type      :      6 in 24 AWG Pigtails

The MS series remote accessories are designed to be used with the air products and controls duct smoke detectors to provide audible and visual indication as well as remote test/reset functions. These devices are constructed of attractive, yet durable brushed stainless steel and mount on a standard single or double gang electrical backbox.

  • Status indicator - red alarm, yellow fault
  • Remote test station test and reset key
  • Face plate housing

Standards/Certifications: UL 268 listed

Applications: For air products and controls conventional duct smoke detectors

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20284_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20284_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20284_Spec.pdf
