Murdock MUM1752

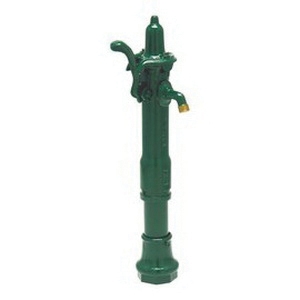

M-175 Green Cast Iron Post-Mount Lever Handle Self-Closing Hydrant, 3/4 in, MNPT

  • Manufacturers: Murdock
  • Brand Name: Murdock
  • PN: MUM1752
  • MPN: MUM1752
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Actuation Type      :      Lever Handle
Connection Size      :      3/4 in
Connection Type      :      MNPT
Finish      :      Green
Item Name      :      Post Hydrant
Material      :      Cast Iron
Model      :      M-175
Type      :      Self-Closing

Model M-175 delivers year-round service outside or in unheated buildings. To provide freeze-resistant functionality, the control valve is located below the frost line. The spring loaded handle raises and lowers the internal supply line assembly, controlling the valve. The internal supply column is evacuated through drainage ports in the bottom. The hydrant must be operated fully "on".

  • Non-freeze, self-draining
  • Bronze hydrant and grey iron stock
  • Specify depth of bury
  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20387_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20387_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20387_Spec.pdf
