Murdock MUM752

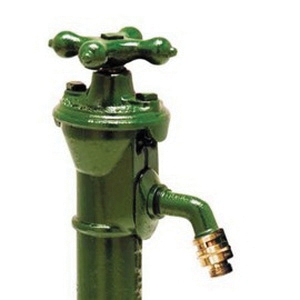

M-75 Green Cast Iron Post-Mount Cross Turn Handle Compression Hydrant, 3/4 in, MNPT

  • Manufacturers: Murdock
  • Brand Name: Murdock
  • PN: MUM752
  • MPN: MUM752
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Actuation Type      :      Cross Turn Handle
Connection Size      :      3/4 in
Connection Type      :      MNPT
Finish      :      Green
Item Name      :      Compression Post Hydrant
Material      :      Cast Iron
Model      :      M-75

Model M-75 delivers year-round service outside or in unheated buildings. To provide freeze-resistant functionality, the control valve is located below the frost line. Turning the handle raises or lowers the internal supply-line assembly, controlling the valve. Hydrant must be operated fully "on". Constructed of heavy red brass, premium-quality gray iron and steel, the M-75 is designed for trouble-free reliability and easy maintenance.

  • Non-freeze, self-draining
  • Bronze hydrant and grey iron stock
  • Specify depth of bury
  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20387_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20390_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20390_Spec.pdf
