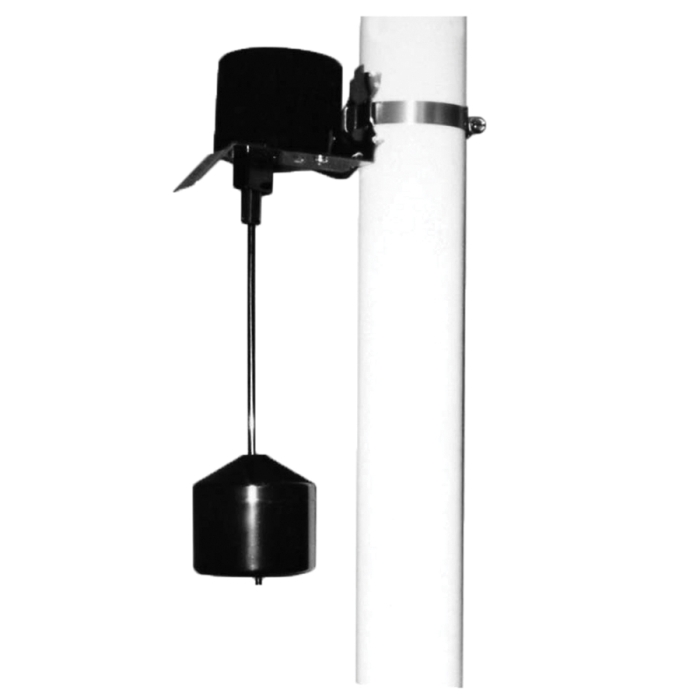

SJE Rhombus 1003590

VerticalMaster PVC Pump Switch, 120/230 VAC

  • Manufacturers: SJE Rhombus
  • Brand Name: SJE Rhombus
  • PN: 1003590
  • MPN: 1003590
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Actuator      :      Mechanical
Amperage Rating      :      13 - 12 A Running Current, 60 A Starting Current
Connection Type      :      16 ga, 2-Conductor
Dimension      :      5 in L x 3 in W x 12 in H
HP Rating      :      1/2 and 1 hp
Item Name      :      Pump Switch
Material      :      PVC
Sub Brand      :      VerticalMaster
Temperature Rating      :      125 deg F
Voltage Rating      :      120/230 VAC

The SJE VerticalMaster pump switch is designed to directly control pumps up to 1/2 hp at 120 VAC and 1 hp at 230 VAC in non-potable water and sewage applications with limited space. It works well in small sump chambers, effluent applications and laundry trays, as well as in large tanks. The SJE VerticalMaster pump switch is not sensitive to turbulence and is available for pump down applications only.

  • Heavy-duty contacts
  • Adjustable pumping range of 3/4 - 6-1/2 in
  • Includes standard boxed packaging
  • Flexible 16 ga, 2-conductor (UL, CSA) SJOW or SJTOW, water-resistant (CPE) cable
  • Stainless steel mounting bracket and hose clamp
  • Injection molded acetal plastic lift rod
  • Neoprene float stop
  • High-impact, corrosion-resistant, PVC housing for use in sewage and non-potable water up to 125 deg F
  • 5-years limited warranty

Standards/Certifications: UL listed, CSA certified

Applications: For limited space applications
