Victaulic S363BFQ023

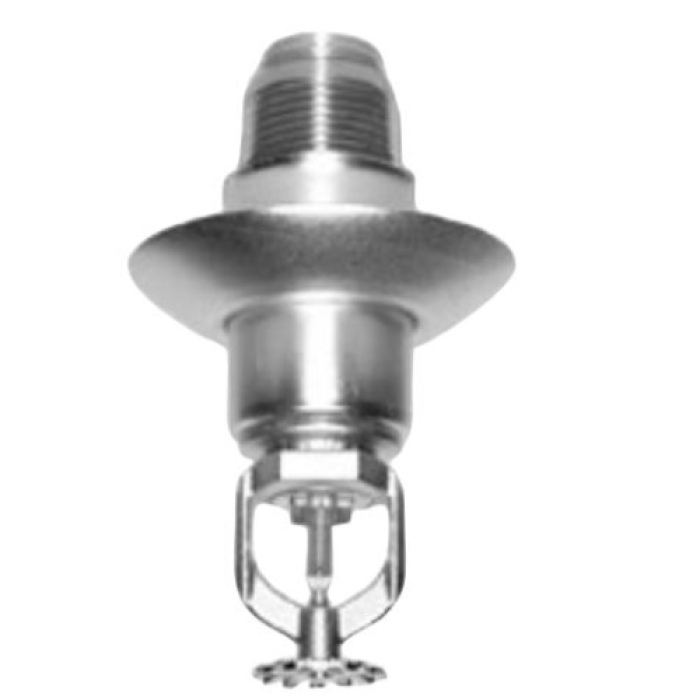

FireLock V3606 Chrome-Plated Quick Response Dry Pendent Sprinkler, 1 in NPT, 200 deg F, 5.6 K-Factor

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: S363BFQ42018012
  • MPN: S363BFQ023
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPT
Finish      :      Chrome-Plated
Item Name      :      Dry Pendent Sprinkler
K-Factor      :      5.6
Model      :      V3606
Nominal Size      :      1 in
Orifice Size      :      1/2 in
Pipe Length      :      18 in
Pressure Rating      :      175 psi
Series      :      V3
Sub Brand      :      FireLock
Temperature Rating      :      200 deg F
Type      :      Quick Response
  • S-class
  • Cold-rolled steel recessed escutcheon material
  • Recessed escutcheon
  • Dry mode
  • Light, ordinary, extra, storage
  • V36 wrench
  • Brass or stainless steel deflector
  • Glass with glycerin solution bulb
  • 3 mm bulb
  • Stainless steel split spacer, pip cap, inner tube, orifice insert
  • Brass load screw
  • Teflon 3 coated Beryllium nickel alloy and stainless steel spring seal assembly
  • Die cast brass
  • Galvanized steel pipe outer tube
  • 1010 - 1018 mild steel and stainless steel escutcheon/plate
  • SST wire torsion spring
  • Pipe length in 1/4 in increment is 0 in

Standards/Certifications: cULus listed, FM, CCC approved
