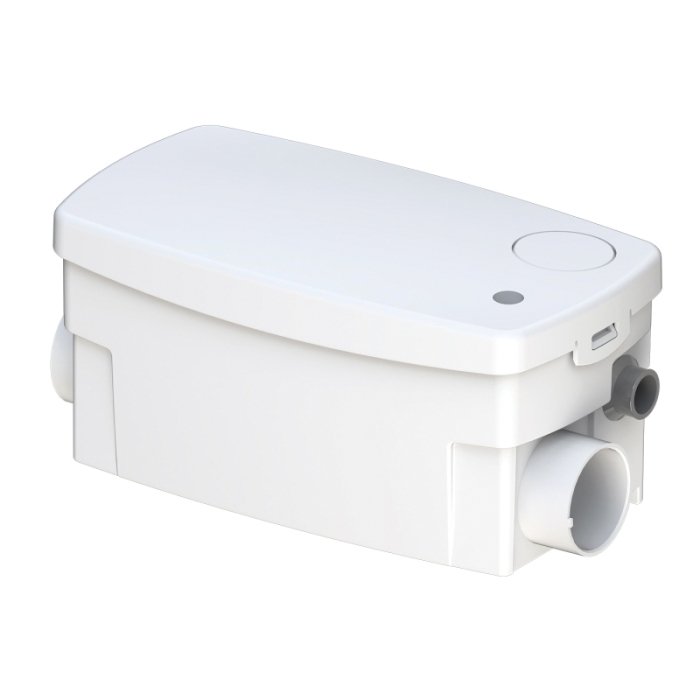

Saniflo SANISHOWER

Drain Pump, 120 VAC, 0.2 hp, 3600 rpm

  • Manufacturers: Saniflo
  • Brand Name: Saniflo
  • PN: SANISHOWER
  • MPN: SANISHOWER
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      5.5 A
Connection Size      :      3/4 or 1 in Discharge, 2 in Side Inlet
Cord Length      :      48-1/2 in
Dimension      :      13-7/8 in L x 6-1/2 in W x 8-3/8 in H
Flow Rate      :      14 gpm at 12 ft, 20 gpm at 3 ft
Frequency Rating      :      60 Hz
HP Rating      :      0.2 hp
Item Name      :      Drain Pump
Maximum Feet of Head      :      26 ft
RPM      :      3600 rpm
Temperature Rating      :      104 deg F
Voltage Rating      :      120 VAC

The Sanishower drain pump is used to pump gray water away from a variety of fixtures in residential applications. The system is able to discharge the waste up to 12 ft vertical and/or 100 ft horizontal. Easy-to-install and small enough to fit underneath a shower base, it is ideal for medium duty applications.

  • Discharges the waste through a 3/4 or 1 in rigid pipe
  • A non-return valve is included on the discharge fitting assembly provided with the system
  • Unlike the other models, the discharge for this model is on the side of the enclosure
  • Has been designed to be vented through a 1-1/4 or 1-1/2 in pipe
  • The vent output is located on the top of the pump
  • The case has a knockout which along with the rubber adapter provided is used to connect to the vent pipe
  • Discharges gray water from a shower or sink
  • The gray water will drain into the system via two 2 in inlets (with built-in check valves) on either side of the housing
  • 2+1-years limited warranty

Standards/Certifications: CSA (IPC, NSPC) certified

Applications: For used to pump gray water away from a variety of fixtures in residential applications

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS25861_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS25861_Spec.pdf
