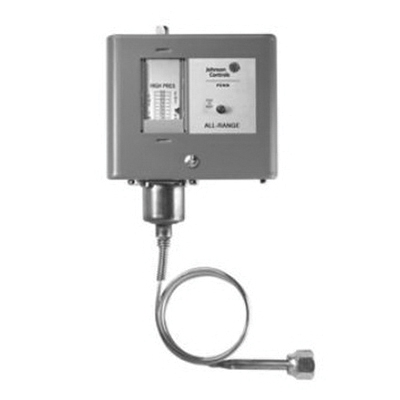

Johnson Controls P70AA-118C

Penn P70 Condenser Fan Cycling Control, 100 - 400 psi, 120/208/240 VAC

  • Manufacturers: Johnson Controls
  • Brand Name: Johnson Controls
  • PN: P70AA-118C
  • MPN: P70AA-118C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      24 A at 120 VAC, 18.7 A at 208 VAC, 17 A at 240 VAC Full Load, 144 A at 120 VAC, 112.2 A at 208 VAC, 102 A at 240 VAC Locked Rotor, 22 A at 120/208/240 VAC Non-Inductive
Connection Size      :      1/4 in
Connection Type      :      Flare Nut
Contact Configuration      :      SPST (Open Low)
Enclosure      :      NEMA 1
HP Rating      :      2/3/3 hp
Item Name      :      Condenser Fan Cycling Control
Pressure Rating      :      100 - 400 psi Range, 35 - 200 deg F Differential
Series      :      P70
Sub Brand      :      Penn
VA Rating      :      125 VA at 120 - 600 VAC, 57.5 VA at 120 - 300 VDC Pilot-Duty
Voltage Rating      :      120/208/240 VAC

The P70 controls for high pressure applications are designed primarily for high pressure cut-out control, head-pressure control and condenser fan cycling control on commercial refrigeration and air conditioning applications. Controls are available in several pressure ranges and are compatible with most common refrigerants. They may also be used on other non-corrosive fluid applications. Ammonia compatible models are also available. Several different electrical ratings and switch configurations are available.

  • All-steel case and cover provides long-lasting, rugged protection for internal components
  • Sight-set calibrated pressure adjustment displays a visible pressure scale, fully adjustable through the range without removing the cover (on NEMA 1 enclosure models)
  • Manual reset lock-out option provides trip-free lock-out that cannot be overridden or reset until pressure returns to specified level
  • Variety of available pressure connection styles allows greater flexibility when mounting control and adapting pressure connections to field application requirements

Applications: For non-corrosive refrigerants
