nVent Caddy PHK

Pyramid Polyethylene/Polypropylene H-Frame Kit, 12-3/8 in L x 12-3/8 in W x 4.6 in H

  • Manufacturers: Erico
  • Brand Name: nVent Caddy
  • PN: PHK
  • MPN: PHK
  • UPC: 78285684530
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Height      :      4.6 in
Item Name      :      H-Frame Kit
Length      :      12-3/8 in
Load Capacity      :      1500 lb Static
Material      :      Polyethylene, Polypropylene
Sub Brand      :      Pyramid
Temperature Rating      :      -30 to 130 deg F
Width      :      12-3/8 in
  • Foam bottom offers low abrasion interface for better roof membrane protection
  • Compatible with roof surfaces including 1-ply, bituminous, metal and spray foam
  • Provides superior load distribution, even with varying rooftop surfaces
  • Rubber rooftop interface ideal for solar panel array installations

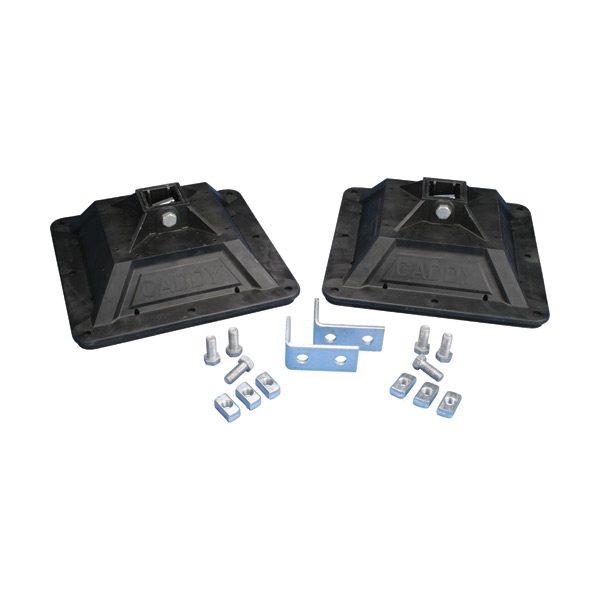

  • Kit includes (2) post bases with pre-installed mounting hardware, (6) bolts, (6) strut nuts and (2) L-brackets to complete H-frame
  • Hot dipped galvanized and UV-stabilized for long-lasting performance
  • Accepts standard strut channels
  • Supports green building requirements, thermoplastic bases are made from recycled material and can contribute to earning LEED credits
  • 3:1 static load safety factor
  • 1-5/8 x 1-5/8 in strut type
  • 287 sq-in surface area

Standards/Certifications: ITB certified

Applications: For H-series support system H-frame supports
