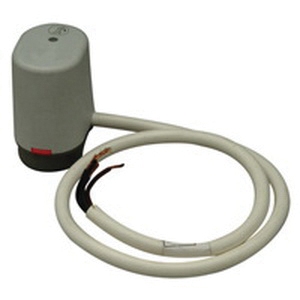

Zurn QHMBMVDS

4-Wire Actuator for Hydronic Zone Valves

  • Manufacturers: Zurn Industries
  • Brand Name: Zurn
  • PN: QHMBMVDS
  • MPN: QHMBMVDS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      1.5 A
Dimension      :      1-7/8 in L x 1-7/16 in W x 2-3/8 in H
Includes      :      Pop-Up Operating Indicator, Integral end Switch and Snap On/Off Manifold Attachment, End Switch
Item Name      :      Zone Valve Actuator
Temperature Rating      :      122 deg F Ambient
Type      :      4-Wire
Voltage Rating      :      24 VAC
Wattage      :      3 W
  • Zone valve actuator for radiant heating applications, 4-wires allows for individual zone control of Zurn Pex QickZone and AccuFlow heating manifolds
  • The actuator is 24 C, 2-wire, normally closed, with a swivel nut connection

Applications: For used with hydronic zone valves
