Kohler K-6284

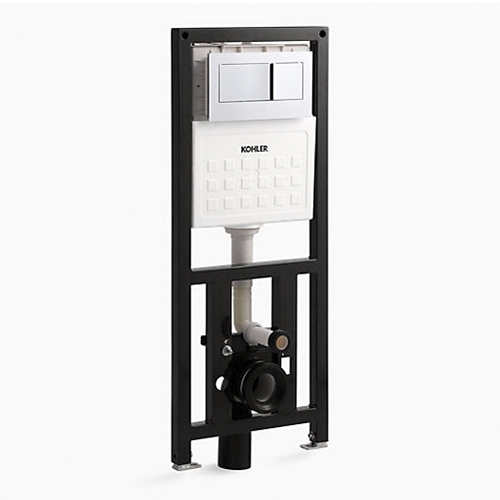

In-Wall Tank and Carrier System with Flush Actuator Plate, 2 x 6 in, 0.8 or 1.6 gpf

  • Manufacturers: Kohler
  • Brand Name: Kohler
  • PN: K6284
  • MPN: K-6284
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Flow Rate      :      0.8 or 1.6 gpf
Height      :      46-5/8 in
Item Name      :      In-Wall Tank and Carrier System with Flush Actuator Plate
Length      :      5 in
Mounting      :      Wall
Pressure Rating      :      80 psi
Size      :      2 x 6 in
Width      :      18-13/16 in

With its insulated tank, durable steel frame, large flush actuator opening and adjustable height, this in-wall carrier provides unparalleled installation flexibility.

  • Robust steel tube frame
  • Dual-flush technology allows you to choose between a full or partial-flush
  • Insulated tank to prevent sweating
  • Large flush actuator plate opening can be removed for easy access to the inner tank
  • Adjustable height allowing the bowl to be set anywhere from 15-3/8 - 28-1/2 in from floor
  • Dual-flush actuator offers a choice of 0.8 or 1.6 gpf
  • Combines with the K-6299 bowl to create a complete K-6303 Veil toilet or with a K-6300 bowl to create a complete K-6304 Veil toilet
  • 1-year limited warranty

Standards/Certifications: ASME A112.19.14, ASME A112.6.2 and DOE energy policy act 1992
