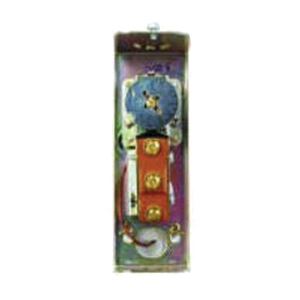

Honeywell L6006C1018/U

High/Low Limit Aquastat Controller, 65 - 200 deg F

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: L6006C-1018
  • MPN: L6006C1018/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      Millivolt: 0.25 A at 0.25 - 12 VDC, Full Load: 8A at 120 VAC, 5.1 A at 240 VAC, Locked Rotor: 48 A at 120 VAC, 30.6 A at 240 VAC
Contact Configuration      :      SPDT
Dimension      :      2 in W x 5-5/8 in H x 2-3/4 in D
Item Name      :      Aquastat Controller
Temperature Rating      :      65 - 200 deg F
Type      :      High/Low Limit

Aquastat controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.

  • Totally enclosed micro switch snap-acting switches operate on temperature rise to set-point
  • Visible control-point scale and external adjustment screw permit easy setting
  • Horizontal or vertical insertion of the sensing element
  • Surface mounting of the sensing element available
  • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
  • Direct or well immersion Tradeline models include heat conductive compound

Standards/Certifications: UL MP466, volume 6, section 1, guide number MBPR2, CSA LR95329-1 certified

Applications: For limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required
