A.Y. McDonald 4213-157

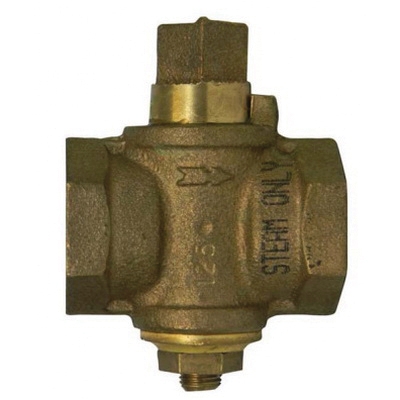

9702 Cast Bronze Square Head Plug Valve Steam Stop without Check, 3/4 in, FNPT, Domestic

  • Manufacturers: A.Y. McDonald Manufacturing
  • Brand Name: A.Y. McDonald
  • PN: MC970234
  • MPN: 4213-157
  • UPC: 053565094731
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      FNPT
Item Name      :      Square Head Plug Valve Steam Stop without Check
Material      :      Cast Bronze
Model      :      9702
Pressure Rating      :      125 psi
Stem Material      :      2.38 in
Temperature Rating      :      250 deg F

A.Y. McDonald Mfg. Co. steam stops are constructed from heavy duty cast bronze. They utilize a tapered plug design with lubricant for an effective seal at high temperatures. These valves are recommended to be used in steam piping applications. Not intended for liquid matter or natural gas use. Made in the USA.

  • Domestic
  • Made in USA

Standards/Certifications: NSF/ANSI certified, ANSI B1.20.1
