McDonnell & Miller 126400
Send Print
  1. pin-int

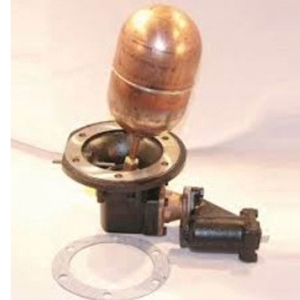

McDonnell & Miller 126400

21 Make-Up Water Feeder, 3/4 in, NPT, 150 psi

  • Manufacturers: Xylem
  • Brand Name: McDonnell & Miller
  • PN: MM126400
  • MPN: 126400
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      NPT
Dimension      :      14-7/16 in L x 20-3/16 in H
Item Name      :      Make-Up Water Feeder
Model      :      21
Pressure Rating      :      150 psi
Temperature Rating      :      120 deg F
  • Direct mounting eliminates need for equalizing connections
  • Proportional feed action
  • Mounting flange: (6) 7/16 in bolt holes on a 53/4 in bolt circle
  • Soft seat provides positive seal
  • Maximum vessel pressure 35 psi

Applications: For boiler receiver tanks

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19896_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19896_Install.pdf
