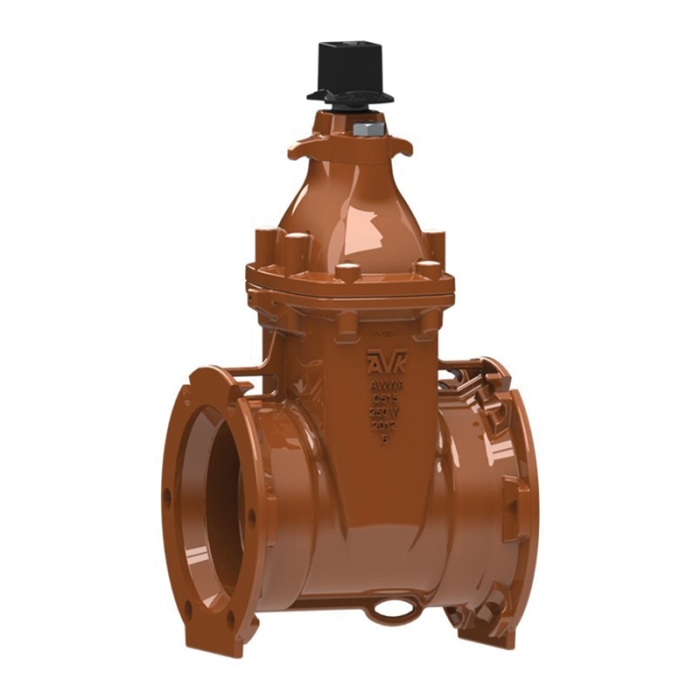

AVK 65-250-MMN
Ductile Iron Resilient Seat Gate Valve, 10 in, Mechanical Joint
- Manufacturers: American AVK
- Brand Name: AVK
- PN: 65-250-0709634034
- MPN: 65-250-MMN
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Connection Size | : | 10 in |
| Connection Type | : | Mechanical Joint |
| Dimension | : | 13 in L |
| Item Name | : | Resilient Seat Gate Valve |
| Material Specifications | : | ASTM A536, AWWA C550, ASTM D2000, 430F |
| Material | : | Ductile Iron |
| Pressure Rating | : | 250 psi |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 160 deg F |
The series 65 valve is our all ductile-iron gate valve that meets or exceeds all of the requirements of AWWA C515. It is available in all end configurations.
- Lead-free
- Reduced wall ductile
- NRS stem
- Open left operating direction
- Every series 65 valve is tested to provide a holiday-free internal coating
- AVK tests the internal coating on every series 65 valve we manufacture, to provide holiday-free certification
- Internal and external coatings meet the requirements of AWWA C550
- All AVK series 65 gate valves meet or exceed the requirements of C515
- Meets the requirements of NSF 61 (Annex G) low lead requirements
- Meets the low lead requirements of the safe drinking water Act
- Threads rolled in a separate cold pressing process to enhance strength
- Rolled threads ensure smooth thread edges and low operating torques
- Twice the yield strength required by AWWA eliminates bent and broken stems
- Packing gland bolts and bonnet bolts are stainless steel for Corrosion-Resistance
- Bonnet bolts are countersunk and capped with hot melt to totally isolate the bolts from corrosive environments
- O-ring bonnet gasket wraps each bolt to prevent corrosion
- Bonnet blow offs due to bolt corrosion eliminated
- Ductile iron wedge fully encapsulated in EPDM rubber with an integral bronze stem nut for optimum corrosion protection and precision wedge tracking
- EPDM resists attack from chloramines
- Ductile iron gland flange for protection should the valve be over-torqued in the closed direction - will not break or crack
- Gland flange equipped with cast in lifting lugs for easy handling
- Wiper ring - to prevent impurities from entering the stem and to protect the o-rings
- Two O-ring stem seals to reduce friction and prevent wear and tear - replaceable under full pressure
- Third O-ring stem seal protects upper stem from impurities entering from the water way
Standards/Certifications: ANSI/NSF Standard 61, ANSI/NSF Standard 372. NSF 61
