Axiom PEX40

PEX-Pal Plastic In-Floor Tubing Organizer, 6 in W x 6 in H x 2-1/8 in D

  • Manufacturers: Axiom Industries
  • Brand Name: Axiom
  • PN: PEX40
  • MPN: PEX40
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Dimension      :      6 in W x 6 in H x 2-1/8 in D
Item Name      :      Tubing Organizer
Material      :      Plastic
Sub Brand      :      PEX-Pal
Type      :      In-Floor

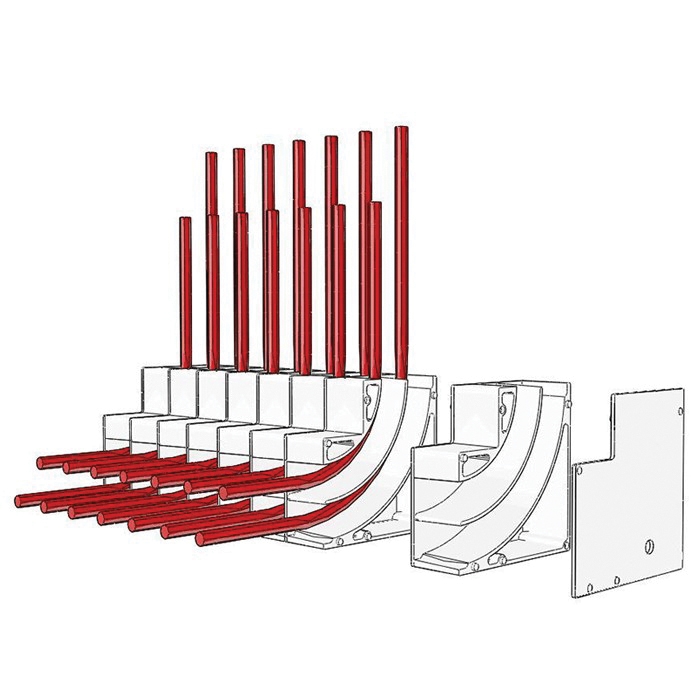

The PEX Pal is a tubing collector and organizer for radiant heating in-floor installations. The modular two-channel design positions the supply and return pipes at the correct spacing required for connection to the manifolds.

  • Fast, organized and cost effective
  • Mounts to decking, rebar, ready-rod, temporary manifold support or wooden forms
  • Completely enclosed design protects the tubing at the floor surface
  • Each channel keeps the supply and return pipes separate and directs them to the correct manifold
  • Modular design allows the installer to add as many zones as required
  • Reversibility of each module allows individual zones to be piped from opposite directions
  • Each module is easily press fit together
  • Maintains a larger bend radius than the manufacturers recommended minimum for 3/4 in and smaller PEX tubing
  • Constructed of high impact strength plastic
