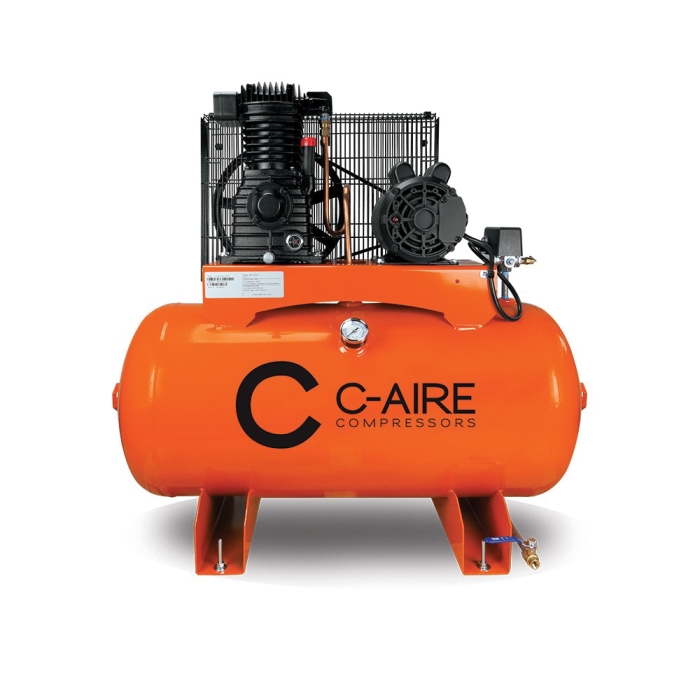

C-Aire S750H-HD1-230

Heavy-Duty Air Compressor, 230 V, 3 hp, 16.2 A, 1 ph, 41 L in x 17 in W x 37 in H

  • Manufacturers: C-Aire Compressors
  • Brand Name: C-Aire
  • PN: S750H-HD1-230
  • MPN: S750H-HD1-230
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      16.2 A
CFM Rating      :      12.5 cfm at 10 psi
Capacity      :      750 gal
Connection Type      :      1/2 in MPT
Dimension      :      41 L in x 17 in W x 37 in H
HP Rating      :      3 hp
Item Name      :      Air Compressor
Phase      :      1 ph
Pressure Rating      :      40 psi
Series      :      S750
Type      :      Heavy-Duty
Voltage Rating      :      230 V
  • Fills 975 gal system to 40 psi in less than 30 min
  • 30 gal horizontal tank
  • Includes tank drain, oil drain tube, full synthetic oil, large oil sight glass
  • Heavy-duty series includes a 3-years warranty on pump
  • 1-year warranty

Standards/Certifications: CSA C22.2 No 68 certified, cETLus Intertek listed, UL 1450 listed
