Zurn QQUFC66GX

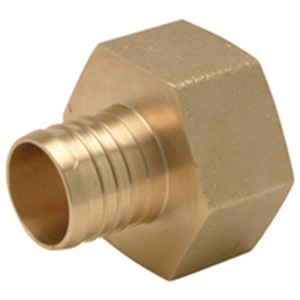

ZurnPEX Large Diameter Crimp Non-Swivel Adapter, 1-1/4 in, Barb x FNPT

  • Manufacturers: Zurn Industries
  • Brand Name: Zurn
  • PN: QQUFC66GX
  • MPN: QQUFC66GX
  • UPC: 084169014825
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1-1/4 in
Connection Type      :      Barb x FNPT
Item Name      :      Crimp Non-Swivel Adapter
Length      :      2.28 in
Material Specifications      :      ASTM F1807, ASTM F877
Material      :      Brass
Pressure Rating      :      160 psi
Sub Brand      :      ZurnPEX
Temperature Rating      :      73 deg F
Type      :      Large Diameter
  • Easy to install
  • Low lead compliant
  • Dezincification-resistant

Standards/Certifications: ANSI/NSF 14 and 61 annex G certified, CSA B137.5, California Proposition 65

Applications: For PEX hot and cold water plumbing applications

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31071_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31071_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31071_Spec.pdf
