Yellow Jacket 68802

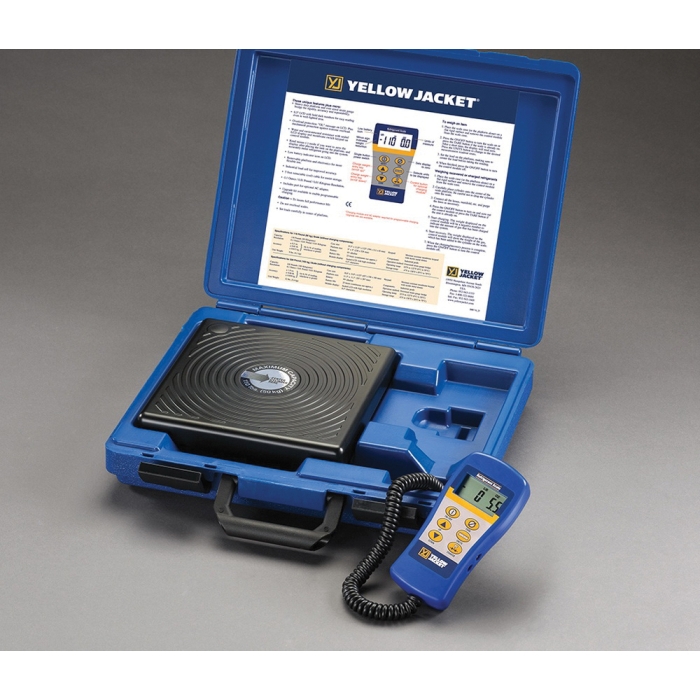

Digital LCD Electronic Charging Scale, 110 lb, 15-1/2 in L x 12-1/4 in W x 3-1/4 in D
- Manufacturers: Ritchie Engineering
- Brand Name: Yellow Jacket
- PN: RC68802
- MPN: 68802
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Battery Type | : | Alkaline |
| Capacity | : | 110 lb |
| Dimension | : | 15-1/2 in L x 12-1/4 in W x 3-1/4 in D |
| Display Type | : | Digital LCD |
| Graduations | : | 0.1 oz |
| Includes | : | Charging Module, Power Pack, Instruction Manual and Larger Carrying Case |
| Item Name | : | Electronic Charging Scale |
| Platform Size | : | 9 x 9 in |
| Power Source | : | 9 V Battery |
Eliminates refrigerant transfer from tank to cylinder to system, the cylinder with refrigerant is weighed before and after charging, charge directly into the system or recover from the system.
- Digital electronic charging scales show the progress of the charge as it's happening, indicating when to close the valves and stop the charge
- Calibration standards traceable to NIST
- Removable control module on retractable 5 ft coiled cord
- Mechanical overload protection and "OL" alert on LCD
- Industrial grade circuitry for long life performance
- Minus (-) reading shows weight removed from the platform
- Single point load cell strain gauge for long term stability and accuracy
- Programmable electronic charging scales have added capabilities for automated, faster and more economical charging
- Mesh filter in charging module protects solenoid valve from debris
- Low flow triggers automatic hold to extend solenoid life
- Schrader valve prevents backflow through solenoid
- Charging accuracy is equal to scale accuracy plus/minus 0.25 oz
- Solenoid valve with 400 psi maximum operating pressure differential (MOPD) allows metering broad range of refrigerants
- Made in the USA
Standards/Certifications: CE certified
