RWV 5015AB 2-1/2

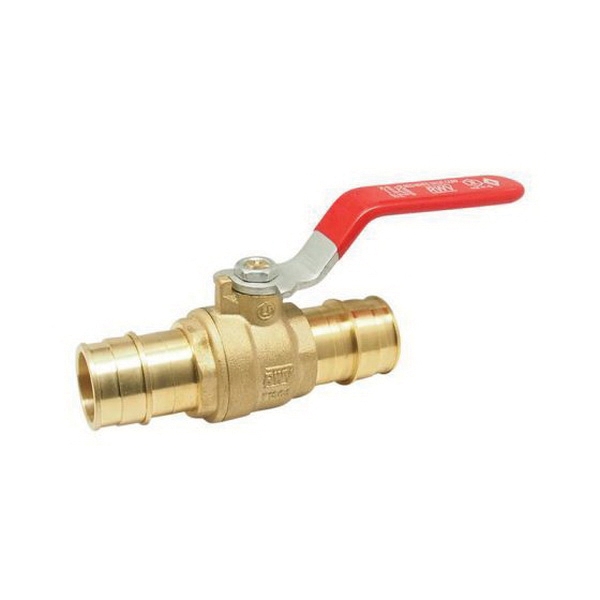

Eco-Valve 5015AB Dacromet-Coated Steel Handle Operator DZR Brass Full-Port Expansion Ball Valve, 2-1/2 in, PEX Barb

  • Manufacturers: Red-White Valve Corporation
  • Brand Name: RWV
  • PN: 5015AB.212
  • MPN: 5015AB 2-1/2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated DZR Brass
Connection Size      :      2-1/2 in
Connection Type      :      PEX Barb
Dimension      :      8.96 in L
Item Name      :      Expansion Ball Valve
Material Specifications      :      ASTM F1960, ASTM B927, C27453, ASTM A36
Material      :      DZR Brass
Model      :      5015AB
Operator Type      :      Dacromet-Coated Steel Handle
Pressure Rating      :      400 psi WOG
Seat Material      :      PTFE
Stem Material      :      DZR Brass
Sub Brand      :      Eco-Valve
Temperature Rating      :      200 deg F
Type      :      Full-Port
  • Lead-free
  • Virgin PTFE seats
  • Double NBR O-ring packing
  • Blowout-proof stem design
  • DZR lead-free brass end-piece, zinc-plated steel handle nut

Standards/Certifications: cCSAus certified, CSA B125.3, CSA B125.14, AB1953, cTLus, ANSI/NSF 61 and 372
