Spears 4532-030C

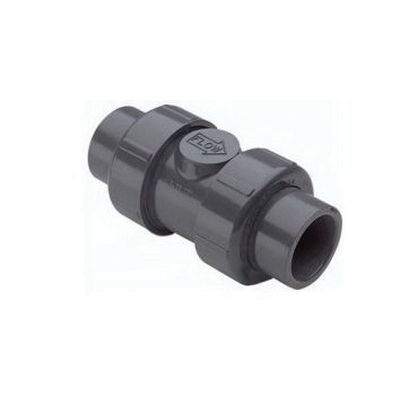

CPVC Industrial True Union 2000 Ball Check Valve, 3 in, Socket

  • Manufacturers: Spears Manufacturing
  • Brand Name: Spears
  • PN: 4532-030C
  • MPN: 4532-030C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Gray
Connection Size      :      3 in
Connection Type      :      Socket
Dimension      :      10-3/4 in L x 6- 3/16 in W
Flow Co-Efficient      :      275 Cv
Item Name      :      Ball Check Valve
Material      :      CPVC
Pressure Rating      :      235 psi
Seal Material      :      FKM
Temperature Rating      :      73 deg F
Type      :      Industrial, True Union 2000

Flow tested design provides quick response with positive seal for prevention of system back flow in industrial and chemical processing applications.

  • All valves assembled with silicone-free, water soluble lubricants
  • Molded
  • FKM O-ring
  • Lifetime limited warranty
  • Chemical- and corrosion-resistant CPVC construction
  • Strong, buttress thread union nuts
  • Spears Safe-T-Blocked seal carrier
  • Uses standard O-ring seat
  • Fully serviceable, replaceable components
  • Suitable for either horizontal or vertical installations
  • Suitable for vacuum service

Standards/Certifications: ASTM F1970
