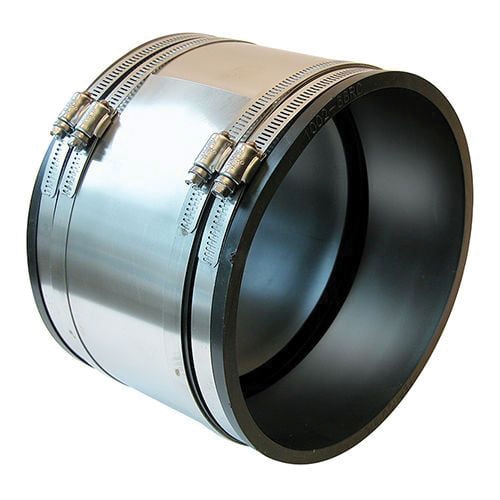

Fernco 1002-44RC

PVC Shielded Flexible Strong Back Coupling, 4 in, Clay x Cast Iron/PVC

  • Manufacturers: Fernco
  • Brand Name: Fernco
  • PN: FE100244RC
  • MPN: 1002-44RC
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      4 in
Connection Type      :      Clay x Cast Iron/PVC
Item Name      :      Flexible Strong Back Coupling
Length      :      4.07 in
Material Specifications      :      ASTM C1173, ASTM D5926
Material      :      PVC
Pressure Rating      :      4.3 psi
Series      :      1002 RC
Temperature Rating      :      -30 to 140 deg F
Type      :      Shielded

Fernco shielded couplings provide maximum transfer of pressure from the clamps to gasket to the pipe. Shielded couplings also add extra strength and rigidity and help maintain proper alignment.

  • Add extra strength to any size Fernco coupling
  • Strong back RC couplings offer a 0.012 in stainless steel shield and a molded in bushing
  • Use with 300 series stainless steel clamps
  • 60 in-lb installation torque

Standards/Certifications: CSA B602, ICC ES PMG, UPC listed

Applications: For resistance to heavy earth loads and shear forces, while providing improved pipe alignment
