Jomar Valve 103-526PG

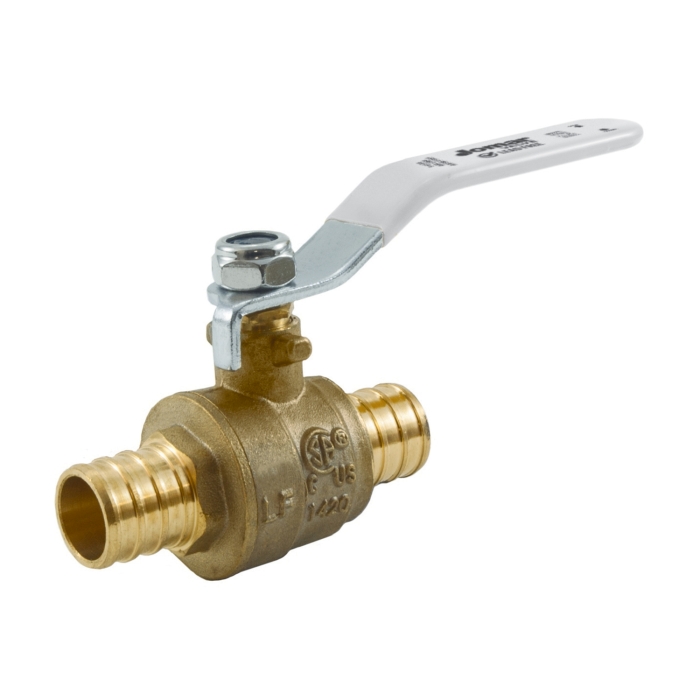

T-412G Brass 2-Piece Standard Port Ball Valve, 1-1/4 in, Crimp PEX

  • Manufacturers: Jomar Valve
  • Brand Name: Jomar Valve
  • PN: 103-526PG
  • MPN: 103-526PG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated Brass
Connection Size      :      1-1/4 in
Connection Type      :      Crimp PEX
Dimension      :      3.62 in L
Item Name      :      Ball Valve
Material Specifications      :      C46500, C37700, SS304
Material      :      Brass
Model      :      T-412G
Operator Type      :      Lever Handle
Pressure Rating      :      400 psi WOG
Seat Material      :      PTFE
Stem Material      :      EPDM
Temperature Rating      :      180 deg F
Trim Material      :      Brass/PTFE
Type      :      2-Piece, Standard Port
  • Lead-free
  • Dezincification-resistant brass
  • Gland follower and single O-ring stem design
  • Blow-out proof stem
  • 100% leak tested
  • Wetted surfaces contain less than 0.25% lead content

Standards/Certifications: ASTM F1807, cUPC listed, RoHS compliant, IAPMO certified, NSF 61-8, NSF 372, IAPMO/ANSI Z1157-2014, NSF/ANSI 14-2014
