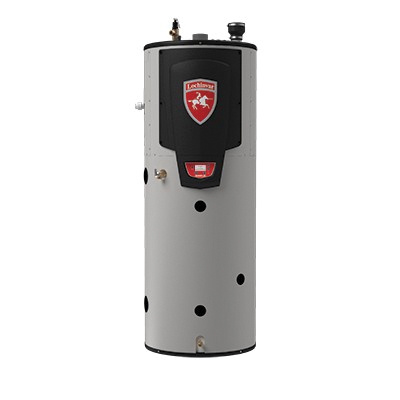

Lochinvar SWA400N
Shield Stainless Steel Condensing Commercial Natural Gas Water Heater, 110 gal, 399000 Btu/hr
- Manufacturers: A. O. Smith Corporation
- Brand Name: Lochinvar
- PN: SWA400N
- MPN: SWA400N
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| BTU Rating | : | 399000 Btu/hr |
| Capacity | : | 110 gal |
| Connection Size | : | 1 in Gas, 1-1/2 in Water |
| Dimension | : | 77-1/2 in H x 34 in Dia |
| Efficiency | : | 0.95 |
| First Hour Delivery | : | 547 gph |
| Flow Rate | : | 459 gph at 100 deg F Rise |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Item Name | : | Gas Water Heater |
| Material | : | Stainless Steel |
| Phase | : | 1 ph |
| Pressure Rating | : | 150 psi |
| Sub Brand | : | Shield |
| Temperature Rating | : | 180 deg F |
| Type | : | Condensing, Commercial |
| Vent Size | : | 4 in |
| Voltage Rating | : | 120 VAC |
The Shield commercial water heater features an advanced water heating system beautifully packaged for the smallest possible footprint. The Shield is available in ten models in standard and ASME construction.
- 10 models from 125000 to 500000 Btu/hr
- Up to 96% thermal efficiency
- Longer vent runs - 150 ft exhaust and 150 ft air Intake
- BMS integration with BACnet and modbus
- Smart control operating control with set-up wizard
- CON.X.US remote connect capable
- Modulating burner with 5:1 turndown
- Operates at temperatures up to 180 deg F for sanitizing applications
- Stainless steel heat exchanger
- Glass-lined steel tank
- LP conversion kit
- Dual magnesium anode rods
- ASME temperature and pressure relief valve
- Zero clearances to combustible material
- Certified for installation on combustible floors
- PVC, CPVC, polypropylene and stainless steel venting up to 150 ft
- Direct-Vent sealed combustion
- Rooftop and sidewall venting
Standards/Certifications: AHRI, CSA, Energy Star certified, ASME HLW stamped
