Nibco NL95H04

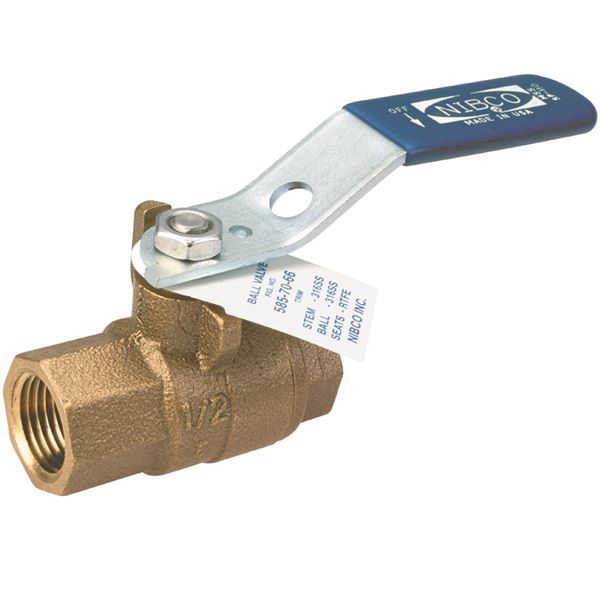

T-585-70-66 Bronze 2-Piece Full-Port Ball Valve, 1/4 in, FIPT
- Manufacturers: NIBCO
- Brand Name: Nibco
- PN: T585-70-66.14
- MPN: NL95H04
- UPC: 039923681010
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: 100/Carton
-
Price:
| Ball Material | : | Stainless Steel |
| Connection Size | : | 1/4 in |
| Connection Type | : | FIPT |
| Dimension | : | 5 in L |
| Item Name | : | Ball Valve |
| Material Specifications | : | ASTM B 16 C36000, ASTM A 276 Type 316, ASTM A 276 Type 316 or ASTM A 351 Type CF8M, ASTM B 584 C84400 |
| Material | : | Bronze |
| Model | : | T-585-70-66 |
| Operator Type | : | CS Standard Lever Handle |
| Packaging Material | : | PTFE |
| Pressure Rating | : | 150 psi Saturated Steam, 600 psi CWP Non-Shock |
| Seal Material | : | RPTFE |
| Seat Material | : | RPTFE |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 400 deg F |
| Trim Material | : | Stainless Steel |
| Type | : | 2-Piece, Full-Port |
The Nibco bronze ball valve ensures ease of operation with quarter-turn (90 deg) open to close. The full port valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas, natural gas and aggressive water applications. Please refer to Nibco technical data sheet, valve selection guides and catalog for engineering and installation information. Choose Nibco ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. Nibco ball valves are backed by the Nibco INC. 5-years 125% limited warranty.
- Vented ball
- Blowout-proof stem
Specification Sheet
