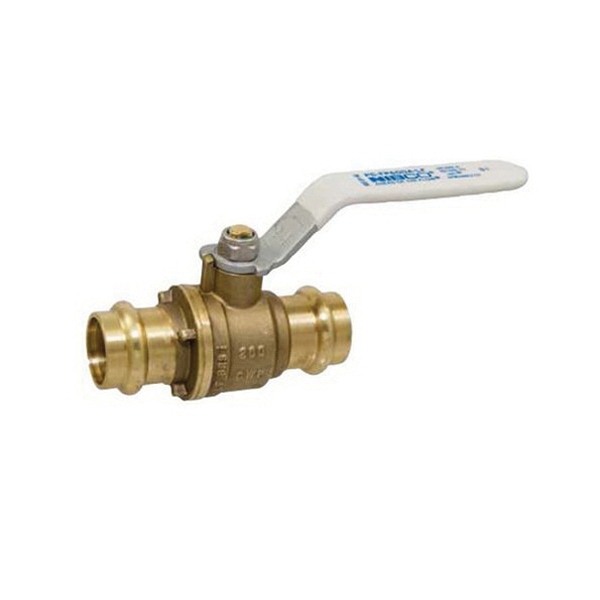

Nibco NF998XE
PC-FP-600A-LF Brass 2-Piece Full-Port Ball Valve, 2-1/2 in, Female Press
- Manufacturers: NIBCO
- Brand Name: Nibco
- PN: PCFP600ALF.212
- MPN: NF998XE
- UPC: 039923384409
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Ball Material | : | Chrome-Plated Brass |
| Connection Size | : | 2-1/2 in |
| Connection Type | : | Female Press |
| Dimension | : | 13.07 in L |
| Item Name | : | Ball Valve |
| Material Specifications | : | ASTM D2000, ASTM B75, C12200 |
| Material | : | Brass |
| Model | : | PC-FP-600A-LF |
| Operator Type | : | Steel-Plated Handle |
| Packaging Material | : | PTFE |
| Pressure Rating | : | 200 psi CWP Non-Shock |
| Seal Material | : | EPDM |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | 250 deg F |
| Trim Material | : | Brass |
| Type | : | 2-Piece, Full-Port |
The Nibco Press System is user friendly, quick and easy-to-install. When properly crimped a unique N witness mark is clearly visible. The lead-free ball valve is specifically designed for use in systems that deliver water for human consumption. Please refer to Nibco technical data sheets and catalogs for engineering and installation information. Nibco Press System applies the proven performance of press technology to Nibco valves and fittings the most specified flow control products in the industry. The Nibco Press System features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. Because of its longstanding reputation for innovation and precision in design and manufacturing, Nibco is the preferred brand in the industry.
- Lead-free
- Press ends leak detection
- Blowout-proof stem
- Dezincification-resistant
- Reinforced PTFE seat rings
Standards/Certifications: ASME B16.51. IAPMO/ANSI Z1157 (IGC-157), NSF/ANSI-61 & 372, MSS SP-145
Applications: For drinking water, domestic hot and cold water, HVAC (condensers, chilled water, hot water heating), isolation and throttling (half-open to full-open only)
