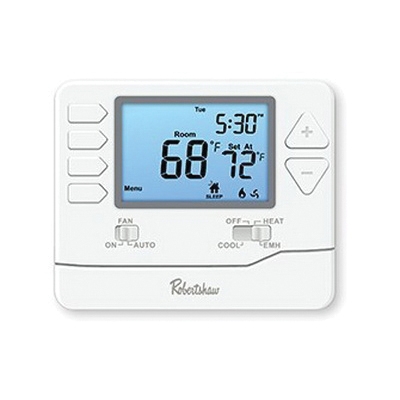

Robertshaw RS8210
Non-Programmable Thermostat, 2 Heat/1 Cool, 24 VAC, 4.6 sq-in Blue Backlit
- Manufacturers: Robertshaw Controls
- Brand Name: Robertshaw
- PN: RS8210
- MPN: RS8210
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Accuracy | : | Plus/Minus 1 deg F |
| Dimension | : | 4.7 in W x3.8 in H x 1 in D |
| Display Type | : | 4.6 sq-in Blue Backlit |
| Frequency Rating | : | 50/60 Hz |
| Item Name | : | Non-Programmable Thermostat |
| Mounting | : | Wall/Junction Box |
| Power Source | : | Battery/Hardwired |
| Programmability | : | Non-Programmable |
| Series | : | RS8000 |
| Setting Temperature | : | 44 - 90 deg F |
| Stages | : | 2 Heat/1 Cool |
| Temperature Rating | : | 41 - 95 deg F |
| Terminal Designation | : | R, C, Y, W2, W/E, G, O, B |
| Voltage Rating | : | 24 VAC |
Contractors can offer owners easy, yet powerful and reliable 2-stage heating and 1-stage cooling control in a simple, modern design with the RS8210 non-programmable wall thermostat.
- Large terminal blocks for easy installation
- Universal sub-base
- Quick access menu button
- Contractor/technician setup menu simple, yet powerful control
- Large, easy-to-read 4.6 sq-in blue backlit display
- 24 VAC powered or battery operation (included)
- Easy-access front-load battery compartment
- Adjustable temperature differential (swing) for energy optimization and maximum system life
- Adjustable room temperature calibration
- Adjustable setpoint limits
- Filter change reminder
- 5 min selectable on/off compressor delay protection for short-cycling prevention
- Separate O and B terminals
- 6-years limited warranty
Standards/Certifications: ISO 9001 standard
Applications: For systems with auxiliary or emergency heat
Installation Sheet
