Robertshaw RS8110

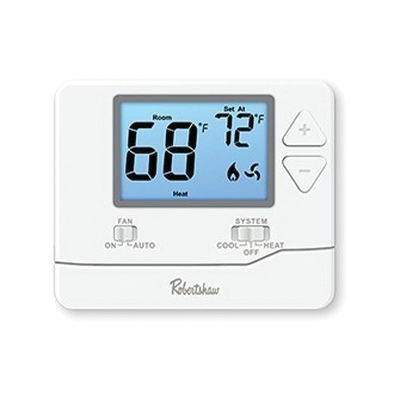

Non-Programmable Thermostat, 1 Heat/1 Cool, 24 VAC, 4.6 sq-in Blue Backlit

  • Manufacturers: Robertshaw Controls
  • Brand Name: Robertshaw
  • PN: RS8110
  • MPN: RS8110
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Accuracy      :      Plus/Minus 1 deg F
Dimension      :      4.7 in W x3.8 in H x 1 in D
Display Type      :      4.6 sq-in Blue Backlit
Frequency Rating      :      50/60 Hz
Item Name      :      Non-Programmable Thermostat
Mounting      :      Wall/Junction Box
Power Source      :      Battery/Hardwired
Programmability      :      Non-Programmable
Series      :      RS8000
Setting Temperature      :      44 - 90 deg F
Stages      :      1 Heat/1 Cool
Temperature Rating      :      41 - 95 deg F
Terminal Designation      :      Rh, Rc, C, Y, W, G, O, B
Voltage Rating      :      24 VAC

Contractors can offer owners easy, yet powerful and reliable 1-stage heating and cooling control in a simple, modern design with the RS8110 non-programmable wall thermostat.

  • Large terminal blocks for easy installation
  • Universal sub-base
  • Quick access menu button
  • Contractor/technician setup menu
  • Large, easy-to-read 4.6 sq-in blue backlit display
  • 24 VAC powered or battery operation (included)
  • Easy-access front-load battery compartment
  • Adjustable temperature differential (swing) for energy optimization and maximum system life
  • Adjustable room temperature calibration
  • Adjustable setpoint limits
  • 5 min selectable on/off compressor delay protection for short-cycling prevention
  • Separate O and B terminals
  • 6-years limited warranty

Standards/Certifications: ISO 9001 standard

Applications: For systems with auxiliary or emergency heat
