ADEY FL1-03-02829
Send Print
  1. pin-int

ADEY FL1-03-02829

Glass Reinforced Nylon Heating System Filter, 3/4 in, NPT

  • Manufacturers: ADEY Innovation Ltd
  • Brand Name: ADEY
  • PN: FL1-03-02829
  • MPN: FL1-03-02829
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
BTU Rating      :      100000 Btu
Connection Type      :      NPT
Flow Rate      :      13 gpm
Item Name      :      Heating System Filter
Material      :      Glass Reinforced Nylon
Pressure Rating      :      87 psi
Size      :      3/4 in
Temperature Rating      :      203 deg F

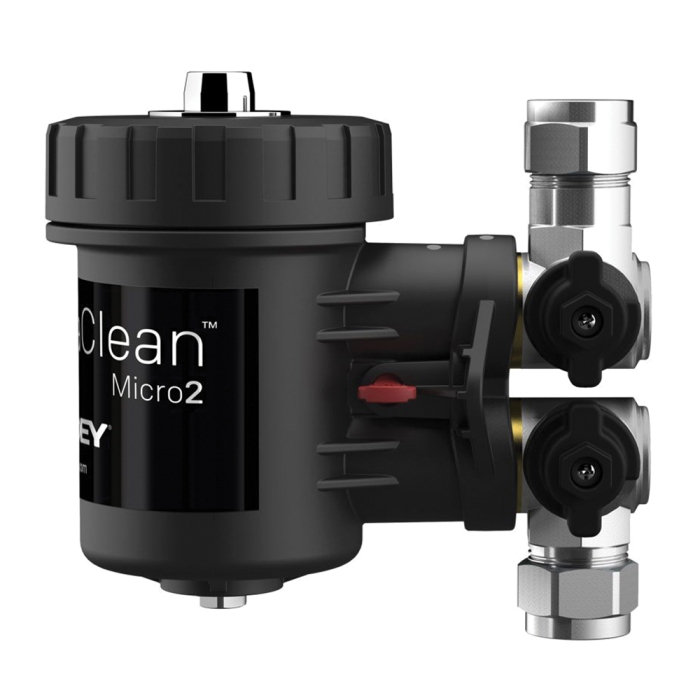

The MagnaClean Micro2 is our smallest filter, but its performance is still powerful. Streamlined to fit easily into the tightest of spaces, it provides exceptional protection against magnetite and other debris for small heating systems.

  • Flow configuration bi directional either port can be inlet
  • Nickel plated brass valve
  • PTFE ball seal
  • EPDM 70 seals x 3 O-ring
  • Nickel plated brass drain port
  • 5-years warranty

Applications: For hydronic heating systems

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31760_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31760_Instal.pdf
