Milwaukee Valve UP969.112

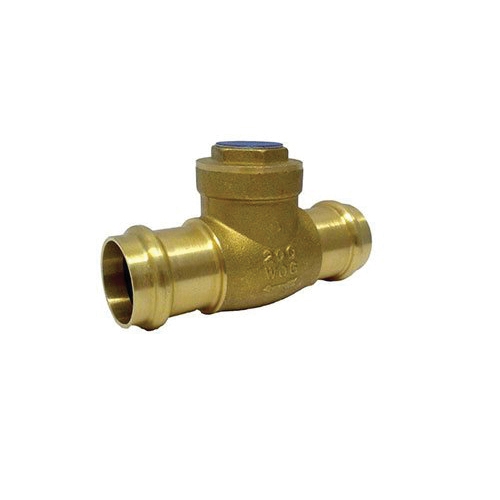

Ultra-Pure UltraPress UP969 Lead-Free Brass Horizontal Swing Check Valve, 1-1/2 in, Press

  • Manufacturers: Milwaukee Valve
  • Brand Name: Milwaukee Valve
  • PN: MVUP969.112
  • MPN: UP969.112
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1-1/2 in
Connection Type      :      Press
Dimension      :      6.13 in
Disc Material      :      Brass
Item Name      :      Swing Check Valve
Material Specifications      :      ASTM B283, C27450, A276, S30400, B124 C27450
Material      :      Lead-Free Brass
Pressure Rating      :      200 psi
Seat Material      :      Brass
Series      :      UP969
Sub Brand      :      Ultra-Pure, UltraPress
Temperature Rating      :      250 deg F
Trim Material      :      Brass
Type      :      Horizontal
  • Low lead valve
  • Non-shock

Standards/Certifications: MSS SP-80 Type-3 Conforms

Applications: For potable water

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31774_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31774_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31774_Spec.pdf
