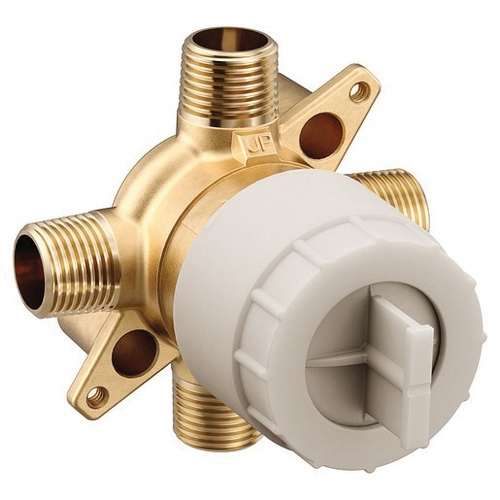

Moen U140CI

Brass 4-Port Rough-In Valve, 1/2 in, C x C and IPS, 3 in L

  • Manufacturers: MOEN
  • Brand Name: Moen
  • PN: MOU140CI
  • MPN: U140CI
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      C x C and IPS
Handle Type      :      Cross
Includes      :      Adjustable Temperature Limit Stop and Test Plug
Item Name      :      Rough-In Valve
Length      :      3 in
Material      :      Brass
Mounting      :      Wall
Number of Handles      :      1
Pressure Rating      :      100 psi
Temperature Rating      :      160 deg F
Type      :      4-Port
Width      :      3-5/8 in

Introducing M-Core, a valve system that's simpler and faster to install and offers functionality with desired style choices to create an ideal shower system.

  • M-Core, 4-cartridge included with the trim
  • Built on the Moen M-Pact common valve system allowing you to update the faucet style in the future without replacing any plumbing
  • Supplied flush plug allows testing up to 200 psi with air (300 psi water)
  • Installation in thin or thick wall applications
  • Lifetime limited warranty against leaks, drips and finish defects to the original homeowner

Standards/Certifications: ASME A112.18.1, CSA B125.1
