DIABLO DSF3625

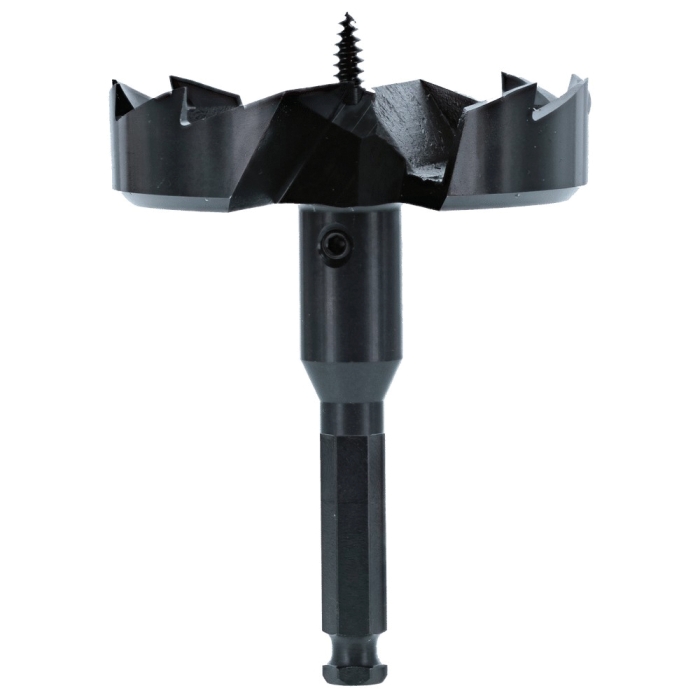

SpeeDemon High-Speed Steel Self-Feed Drill Bit, 3-5/8 in Bit, 5-1/8 in L

  • Manufacturers: Freud America, Inc
  • Brand Name: DIABLO
  • PN: DSF3625
  • MPN: DSF3625
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bit Size      :      3-5/8 in
Item Name      :      Self-Feed Drill Bit
Material Compatibility      :      Wood
Material      :      High-Speed Steel
Overall Length      :      5-1/8 in
Shank Size      :      7/16 in
Shank Type      :      Hex
Sub Brand      :      SpeeDemon

Diablo new SpeeDemon 2-cutter self-feed bits are designed to strict tolerances in the heat forging manufacturing process resulting in energy-efficient drilling with up to 2X life per battery charge. Diablo self-feed bits 2-cutter design and an aggressive low thread count feed screw deliver up to 2X more holes per charge. The replaceable feed screw features a pull-out stop mechanism that prevents the screw from slipping out when the bit is removed from the material. The combined innovative engineering of Diablo self-feed bits make them the ideal choice for making holes up to 2X faster in soft woods.

  • Precision heat forged 2-cutter head made from premium steel on fully-automated equipment delivers quality and consistency for smooth drilling and up to 2X longer life and 2X more holes per battery charge
  • Aggressive low thread count feed screw prevents pitch build-up for hi-performance cuts and up to 2X faster hole making
  • Feed screw with pull-out stop design prevents the feed screw from slipping out when the bit is removed from the material
  • Includes replacement feed screw and allen key
