Hart & Cooley 010814
Send Print
  1. pin-int

Hart & Cooley 010814

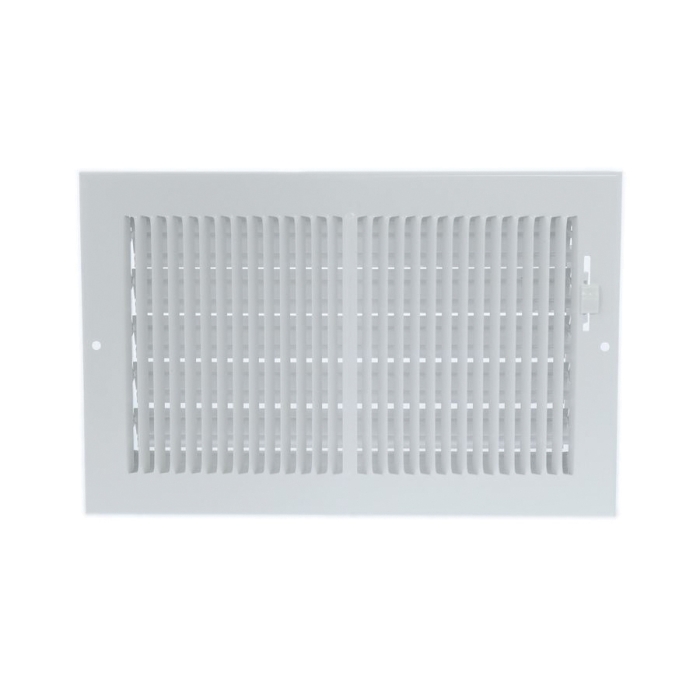

Bright White Steel 2-Way Stamped Face Sidewall Register with Multi-Shutter Damper, 8 x 6 in

  • Manufacturers: Hart & Cooley
  • Brand Name: Hart & Cooley
  • PN: HC10814
  • MPN: 010814
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Area      :      0.18 sq-ft
CFM Rating      :      180 cfm at 1000 fpm
Deflection Type      :      2-Way
Finish      :      Bright White
Grille Spacing      :      1/3 in
Height      :      7-1/4 in
Item Name      :      Sidewall Register with Multi-Shutter Damper
Length      :      9-1/4 in
Material      :      Steel
Model      :      661
Size      :      8 x 6 in
Type      :      Stamped Face
Width      :      1-5/8 in
  • Used for ceiling or sidewall installations
  • Ideal for shallow duct installations
  • 2-way deflection
  • 1/3 in spaced fins set at 20 deg
  • Galvanized multi-shutter valve
  • 1-5/8 in depth when fully opened
  • Interlocking valve louvers for positive shut-off

Applications: For heating or cooling applications
