Victaulic S271AFS410

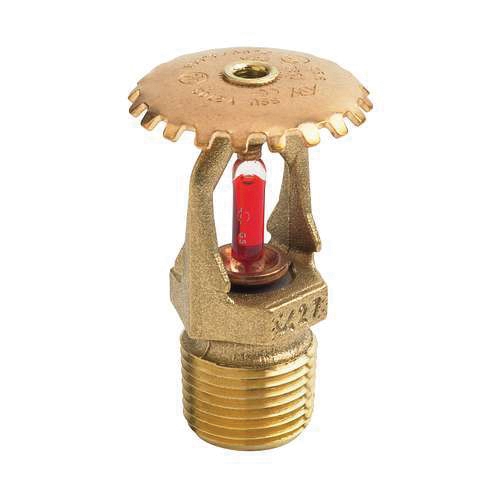

FireLock Plain Brass Standard Response Upright Sprinkler, NPT, 5.6, 2-3/8 in H

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: S27-1AF-S410
  • MPN: S271AFS410
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPT
Dimension      :      2-3/8 in H
Finish      :      Plain Brass
Item Name      :      Upright Sprinkler
K-Factor      :      5.6
Model      :      V2703
Nominal Size      :      1/2 in
Orifice Size      :      1/2 in
Pressure Rating      :      250 psi
Sub Brand      :      FireLock
Temperature Rating      :      200 deg F
Type      :      Standard Response
  • Light, ordinary, extra, storage
  • 5 mm glass bulb with glycerin solution
  • Bronze load screw
  • Bronze pipe cap
  • Beryllium nickel spring
  • Teflon tape seal
  • Stainless steel lodgment spring
