Victaulic S34-2CF-S510

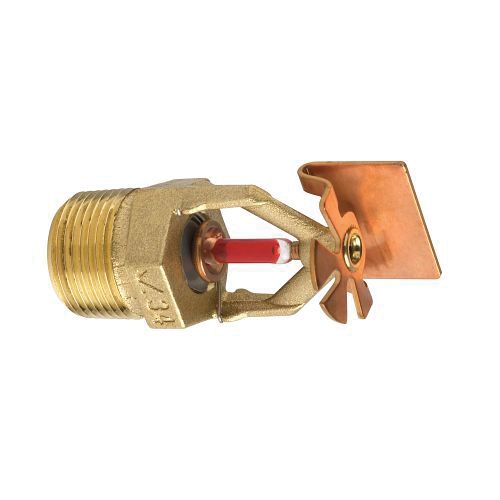

FireLock Plain Brass Standard Response Horizontal Sidewall Sprinkler, NPT, 8, 2-15/16 in H

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: S34-2CF-S510
  • MPN: S34-2CF-S510
  • UPC: 68830429026
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPT
Dimension      :      2-15/16 in H
Finish      :      Plain Brass
Item Name      :      Horizontal Sidewall Sprinkler
K-Factor      :      8
Model      :      V3409
Nominal Size      :      3/4 in
Orifice Size      :      17/32 in
Pressure Rating      :      175 psi
Sub Brand      :      FireLock
Temperature Rating      :      200 deg F
Type      :      Standard Response
  • Light, ordinary
  • 5 mm glass bulb with glycerin solution
  • Bronze load screw
  • Bronze pipe cap
  • Beryllium nickel spring
  • Teflon tape seal
  • Stainless steel lodgment spring
